GepRC GEP-M10Nano GPS Module

GEPRC GEP-M10Nano GPS Module

Microscopic Footprint. Flagship Satellite Acquisition.

The GEP-M10Nano is designed for FPV pilots who require a dependable global positioning link without sacrificing weight or physical space. Measuring at an incredibly small footprint and weighing just a fraction of a gram, it is the ideal safety upgrade for high-performance builds where standard-sized GPS modules simply will not fit.

Equipped with a built-in high-gain ceramic patch antenna and a low-noise amplifier (LNA), the GEP-M10Nano maximizes satellite reception even when mounted close to noisy onboard video electronics or high-power telemetry equipment. The u-blox M10 core allows the module to concurrently track up to four global satellite constellations (GPS, GLONASS, Galileo, and BeiDou), resulting in highly precise coordinates, rapid cold-start acquisition times, and a rock-solid, dependable connection for critical rescue modes or telemetry logging.

Key Features

• Next-Gen u-blox M10 Platform: Advanced chip architecture delivers faster positional calculations and superior anti-jamming capabilities.

• Concurrent Multi-Constellation Tracking: Decodes signals from GPS, GLONASS, Galileo, and BeiDou simultaneously for high satellite counts.

• Ultra-Lightweight Micro Design: Negligible weight footprint makes it perfect for tight sub-250g rigs and toothpick frames.

• Integrated Flash Memory: Retains configuration settings and orbital data to facilitate rapid hot-starts on subsequent battery swaps.

• Onboard Signal Amplification: Built-in LNA and dedicated RF filter minimize electrical interference from high-frequency FPV components.

• Visual Status Indicator: Integrated onboard LED provides immediate, clear visual feedback regarding power status and active satellite locks.

Technical Specifications

• GNSS Platform: u-blox M10

• Supported Constellations: GPS, GLONASS, Galileo, BeiDou

• Input Voltage: $3.3\text{V} – 5.0\text{V}$

• Receiving Channels: 72 Channels

• Baud Rate: 115200 bps (Default)

• Output Protocol: UBLOX (Betaflight / INAV compatible)

• Output Frequency: 1Hz – 10Hz (Default 10Hz)

• Horizontal Position Accuracy: Approx. 2.0m

• Dimensions: 15mm x 15mm x 5.5mm

• Weight: ~2.5g

Summary

Note: Due to the current out-of-stock status of the DPS310 barometer, it will be replaced with the DPS368 barometer. There are no differences in performance or usage between the two barometers, and the old and new versions will be shipped randomly.

Specifications

• GPS chip: u-blox M10050
• Input voltage: 3.3V-5V
• Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
• Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning
• Channel: 72ch
• Navigation satellites: Up to 32 pieces

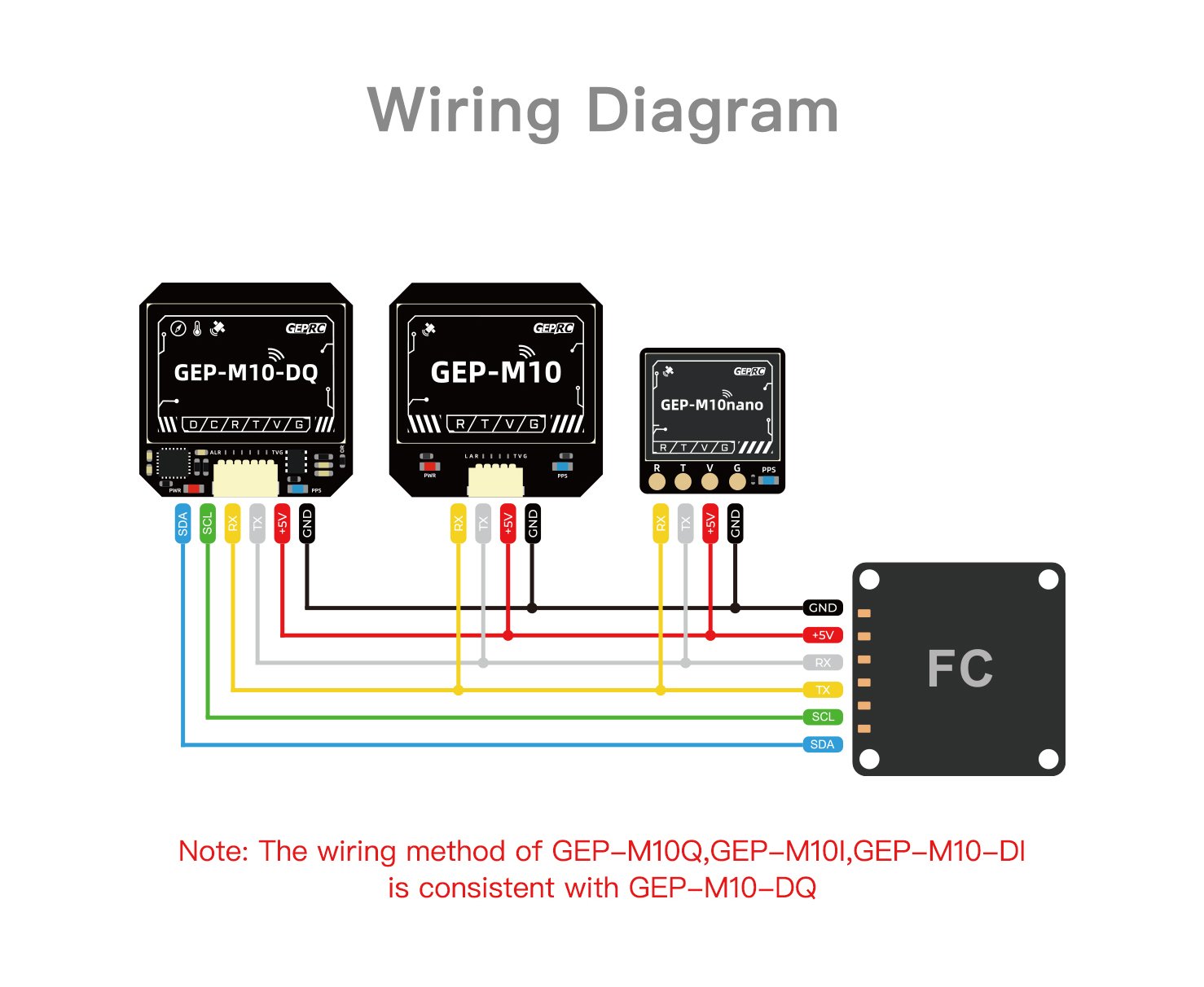

• Output protocol: UART(ublox), I2C(Baro,Mag)
  (Noted: Ublox output, you need to create the corresponding program yourself)
• Baud rate: 115200bps
• Output Frequency: 10Hz
• Speed Accuracy: 0.05 m/s
• Horizontal positioning accuracy: 2D ACC1.5m(Weather)
• Timing accuracy: 30 ns
• Receiver sensitivity: Trace-162dBm，Capture-160dBm
• Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s
• Maximum acceleration: 4G
• Mag: QMC5883L,IST8310
• Baro：DPS310

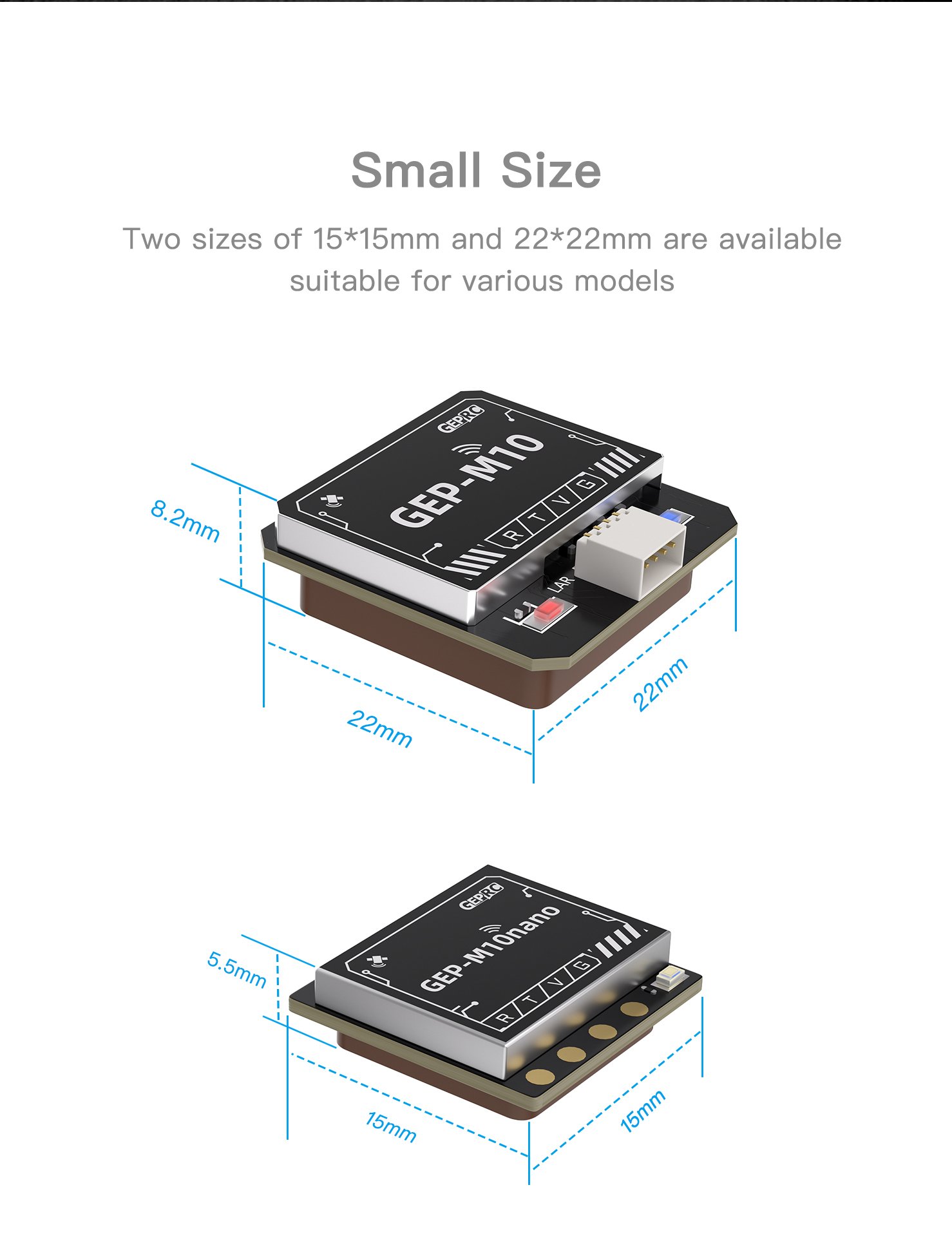

• Size: 15x15x7.5mm(GEP-M10nano),22x22x8.2mm(GEP-M10)
• Antenna size: 12x12mm(GEP-M10nano),18x18mm(GEP-M10)
• Weight: 4.1g(GEP-M10nano),7.8g(GEP-M10)

Features

1. u-blox M10050 chip
2. GPS+BDS+Galileo+QZSS+SBAS joint positioning
3. Fast positioning speed,Up to 32 satellites
4. Stable connection quality
5. 12x12mm or 18x18mm antenna size, better signal receiving performance
6. Built-in Flash chip and Farad capacitor
7. Onboard indicator light, easy to use
8. Optional integrated magnetometer + barometer, more collocation scheme

Includes

1 x GPS module

1 x terminal wire

1 x GPS module instruction manual

1 x GEPRC sticker

1 x heat shrink tubing
