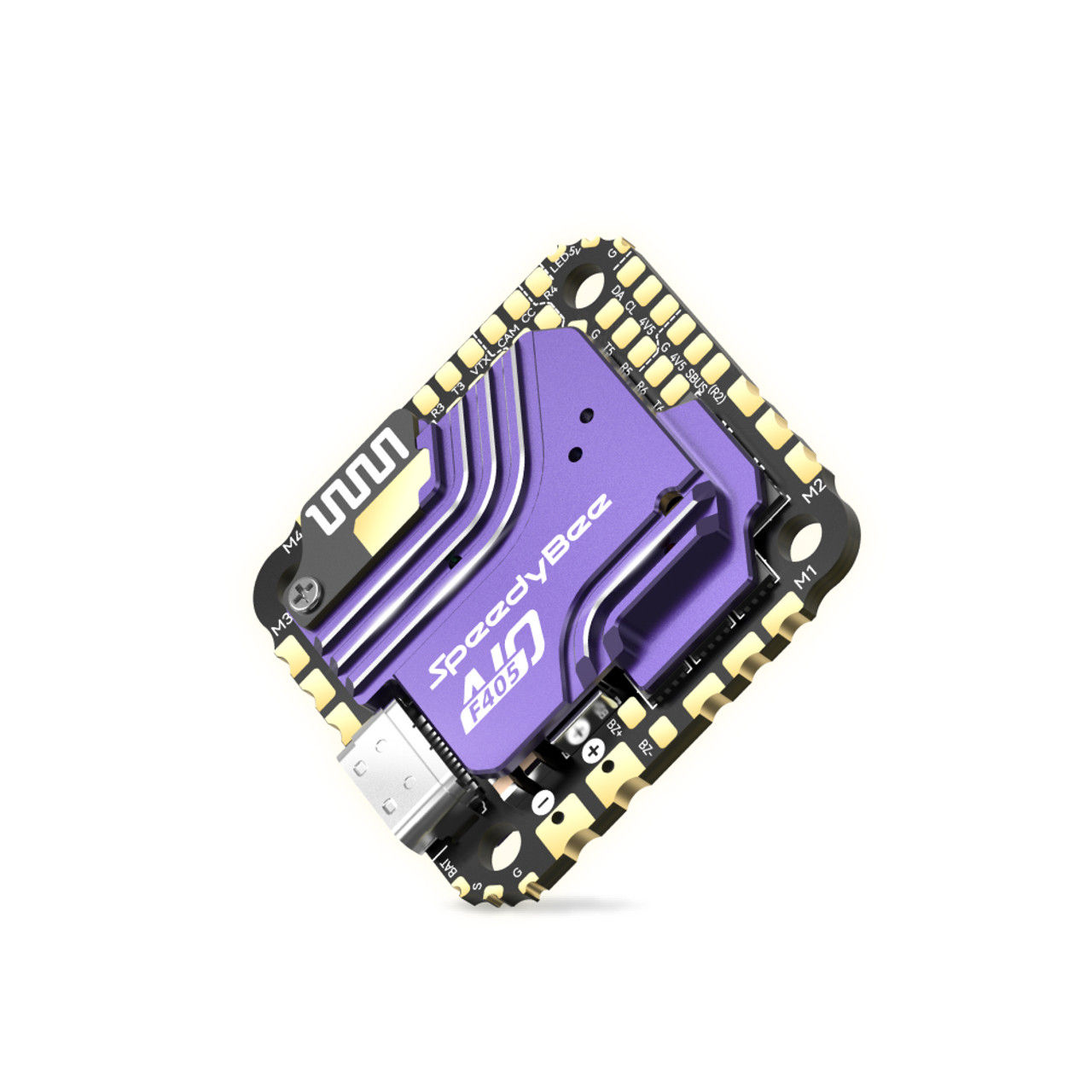

Speedybee F405 is an affordable AIO board with rich features, integrating flight controller with ESCs. The board can be powered by 3-6S Lipo batteries and is suitable for 3-4" drones, Cinewhoops and lightweight 5" drones. The aluminum heat sink helps dissipate heat and protects sensitive components from dirt. The flight controller is based on the F405 processor combined with the ICM42688P gyro. These are complemented by a barometer for altitude measurement and 8MB memory for the blackbox. The board can be set up via the integrated USB-C connector, external USB-C connector or integrated Bluetooth module. The board also includes a 5V BEC. The 9V BEC is not integrated, but is supplied separately for external connection. There are I2C pins on the board for compass connections. The controllers use Bluejay firmware and can handle current up to 40A.

Flight Controller
MCU: STM32F405
Gyro: ICM-42688P
USB Port Type: Type-C
Barometer: SPA06-003
OSD: Supported
Bluetooth BLE: Supported, Bluetooth speed enhancement - 2.0
Wireless Flight Controller Firmware Update: Supported (no need to press physical BOOT button)
Wireless Download & BlackBox Analysis: Not supported
DJI Air Unit Connection Method: Supports both 6-pin direct insertion and soldering
6-pin DJI Sky Port Direct Insertion: Supported, can directly connect to DJI O3/RunCam Link/Caddx Vista without changing wire order
Flash (for BlackBox): 8MB
Betaflight CC Pads (Camera Parameter Adjustment): Supported
Input Voltage: 3S-6S LiPo battery
4V5 Output: Two 4V5 outputs; total current 1A
5V BEC Output: Three 5V outputs; total current 2A; shared with 4V5
9V BEC Output: None (comes with an external BEC module, can switch between 5V and 9V); total current output 2A
MOTOR: M1-M4
UART: 4 full-function serial ports (UART3, UART4, UART5, UART6 + SBUS[R2])
ESC Telemetry: None
I2C: Supported
LED Pads: Supported, used to control WS2812 LED lights
Buzzer Pads: Supported, BZ+ and BZ- pads
BOOT Button: Supported, press and hold the BOOT button while powering on to enter DFU mode for firmware recovery
RSSI Pads: None
SmartPort: Not supported
Supported Flight Controller Firmware: BetaFlight (Default), INAV
Firmware Target Name: SPEEDYBEE F405AIO
Mounting: 25.5 x 25.5mm, 2mm hole diameter
Dimensions: 33.0mm (length) x 33.0mm (width) x 8mm (height)
Weight: 13.6g (including CNC)

ESC
Input Voltage: 3-6S LiPo battery
Continuous Current: 40A
Burst Current: 45A (10s)
ESC Protocol: Supports DSHOT600/300; other protocols may cause severe errors, please use with caution.
Output Voltage: VBAT battery voltage (used to power the flight controller)
Current Sensor: Supported (Scale = 254, Offset = 0)
Firmware: Bluejay JH-40 48kHz

Package Includes
1x AIO board
1x Set of softmounts
1x Set of screws
1x Set of cables
1x XT30 with cable
1x Capacitor
1x External BEC
1x External USB-C connector
1x Power expansion board
1x Soldering practice board
