Flywoo 5V/12V 2A BEC module V2.0

Notice:
1. If the BEC input is a 6S battery, a 6S voltage capacitor needs to be added.
2. If the BEC input is FC or ESC, no capacitor is needed

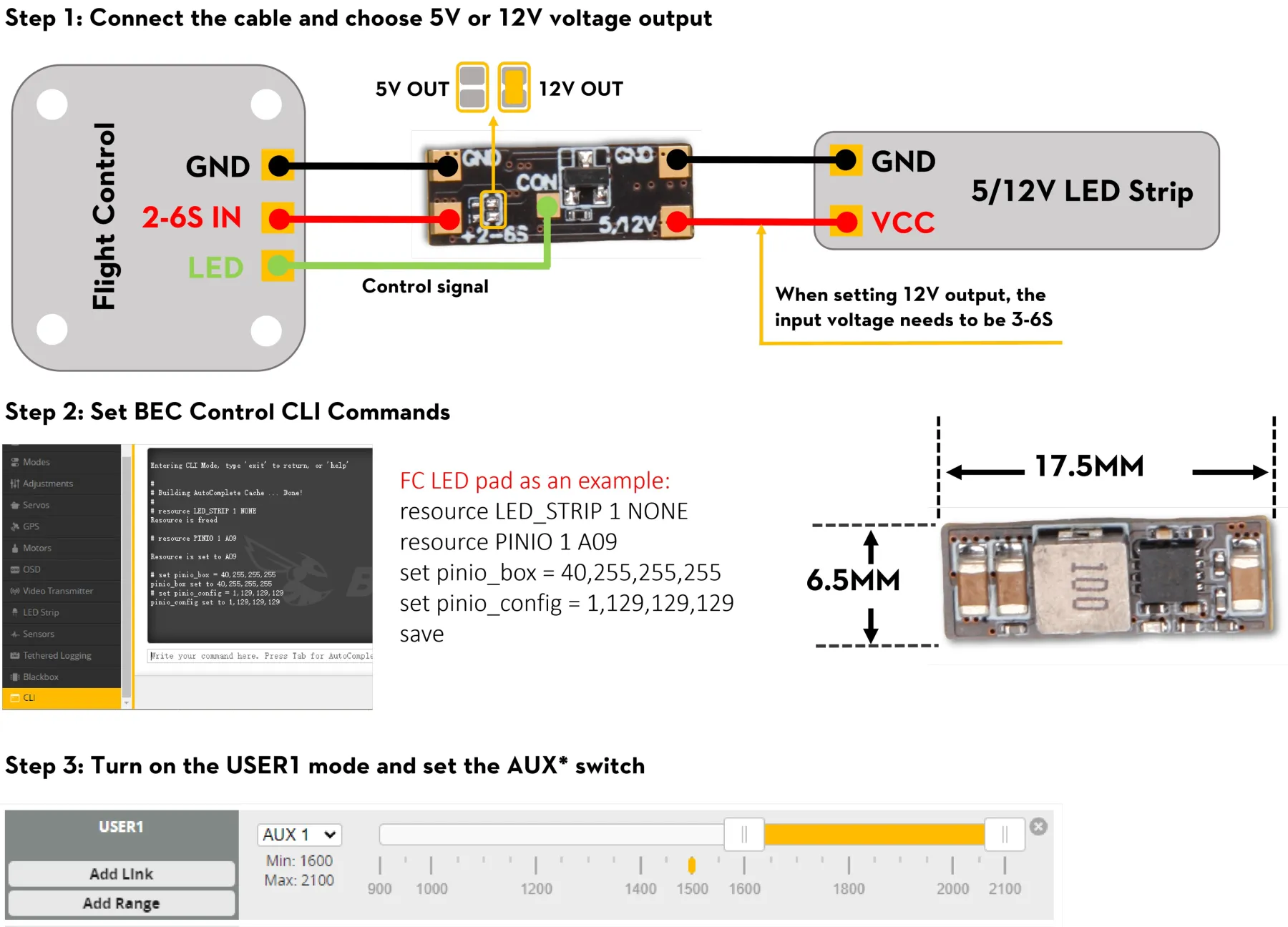

Flywoo 12V Bec is the first module equipped with a switch
Description:
Brand name: Flywoo

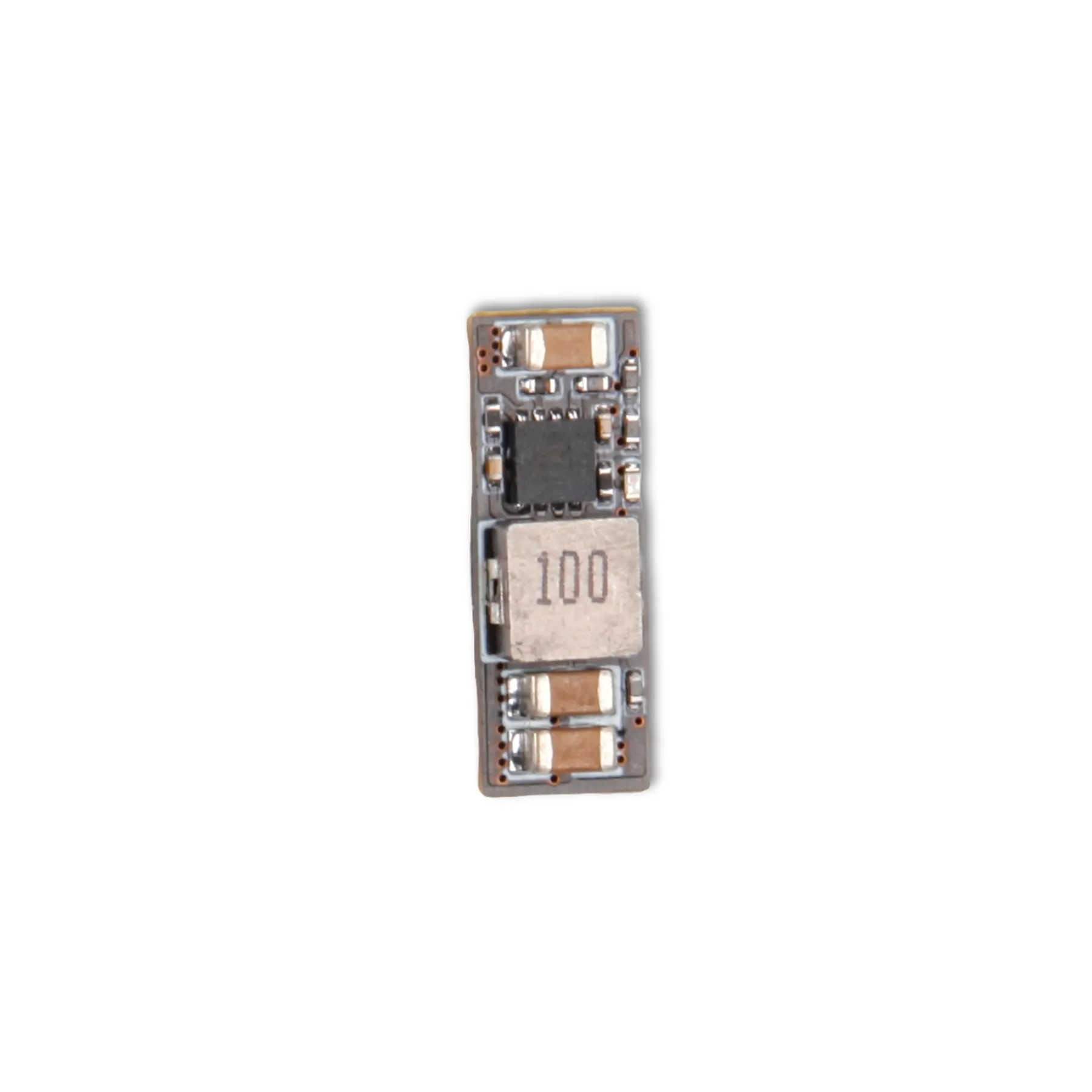

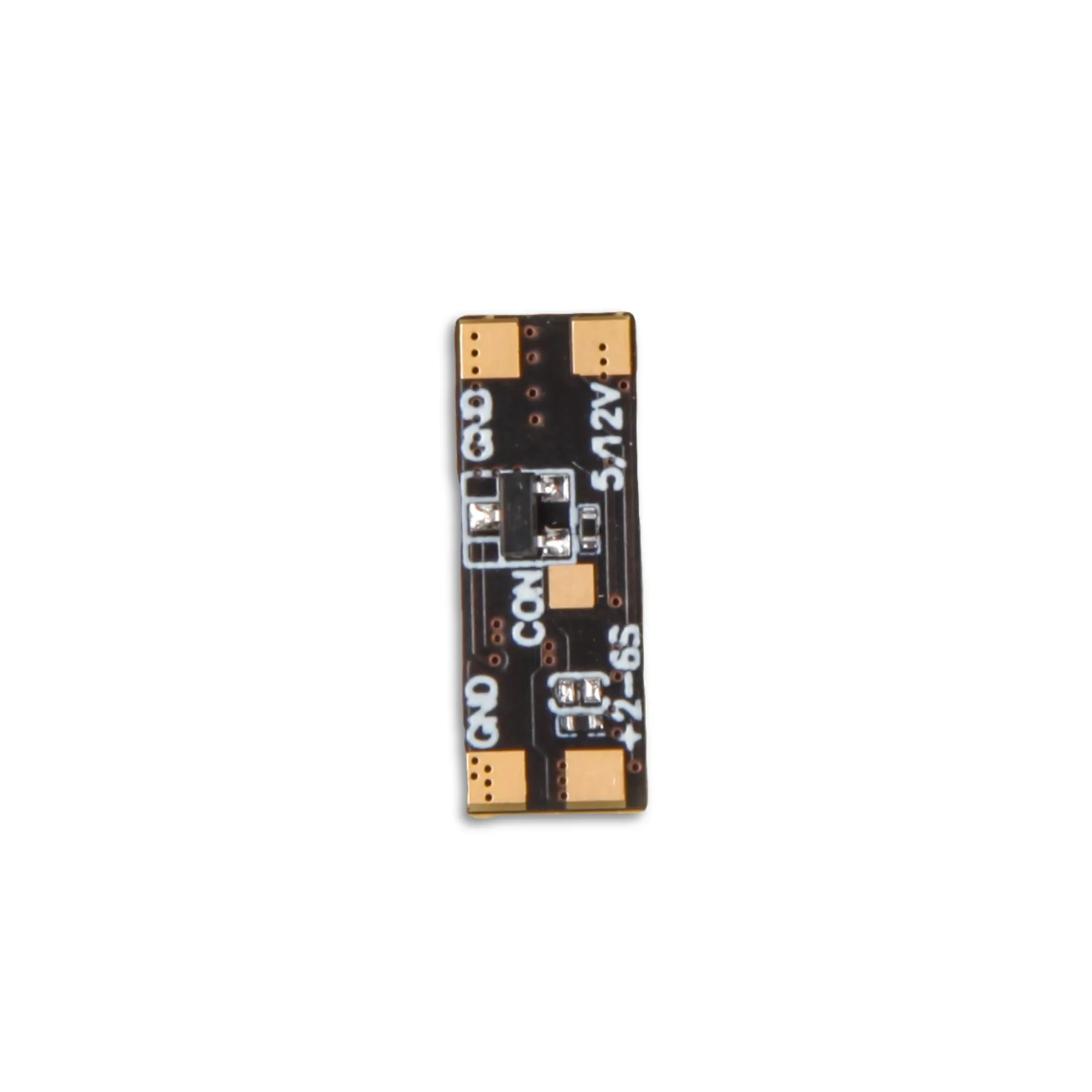

Item name:  5V/12V 2A BEC module V 2.0
Input voltage: 2-6S
BEC Output: 5V/2A, 12V/2A (default 5V/2A)
Size: 17.5*6.5mm
Weight:0.5g
Features:
Switch BEC mode
High-efficiency synchronous
Wide 7V to 26V Input voltage range

When 5V output, input can be 7-26V
When 12V output, input needs 12V-26V.

Voltage output can be 5V or 12V adjustable. (default 5V)
Package included:
1 x flywoo 2-6S BEC
1 x connecting cable set

Flywoo 5V/12V 2A Micro Dual-Output BEC

Ultra-Compact Regulation. Clean Power Filtering.

The Flywoo Dual Output BEC is a lightweight, high-efficiency step-down voltage regulator designed specifically for FPV multirotors. Supporting a wide input voltage range from 2S all the way up to 6S LiPo, it safely drops your main battery voltage down to a usable 5V or 12V output. The output voltage is easily selectable via a simple solder bridge on the PCB, giving you the flexibility to switch between powering 5V receivers/LEDs or 12V digital video equipment.

Equipped with advanced internal filtering, this micro BEC shields sensitive peripherals from the high-frequency electrical noise and voltage spikes generated by active braking ESCs. Weighing less than a single gram, it can be tucked away virtually anywhere inside an ultra-light cinema rig or an aggressive freestyle quad, making it an indispensable tool for clean and reliable power distribution.

Key Features

• Selectable Dual Output: Easily choose between 5V or 12V output configurations via on-board solder pads.

• Wide Input Range: Supports 2S to 6S LiPo input voltages ($7V – 26V$), making it universally compatible with micro and full-sized builds.

• Stable 2A Output Current: Delivers up to 2A of continuous current—ample power for power-hungry digital video transmitters or extensive peripheral arrays.

• Integrated Hardware Filtering: Reduces electrical ripples and video noise for a cleaner signal link.

• Microscopic Footprint: Incredibly small and lightweight design that adds zero noticeable weight or bulk to your layout.

• Short-Circuit Protection: Features built-in thermal shutdown and over-current safeguards to prevent catastrophic hardware damage.
