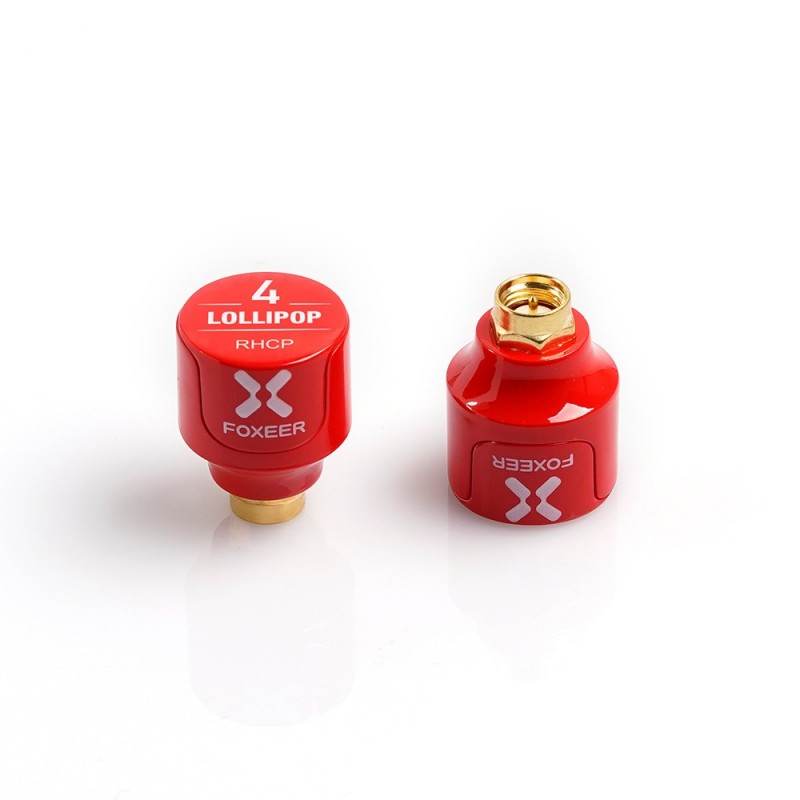

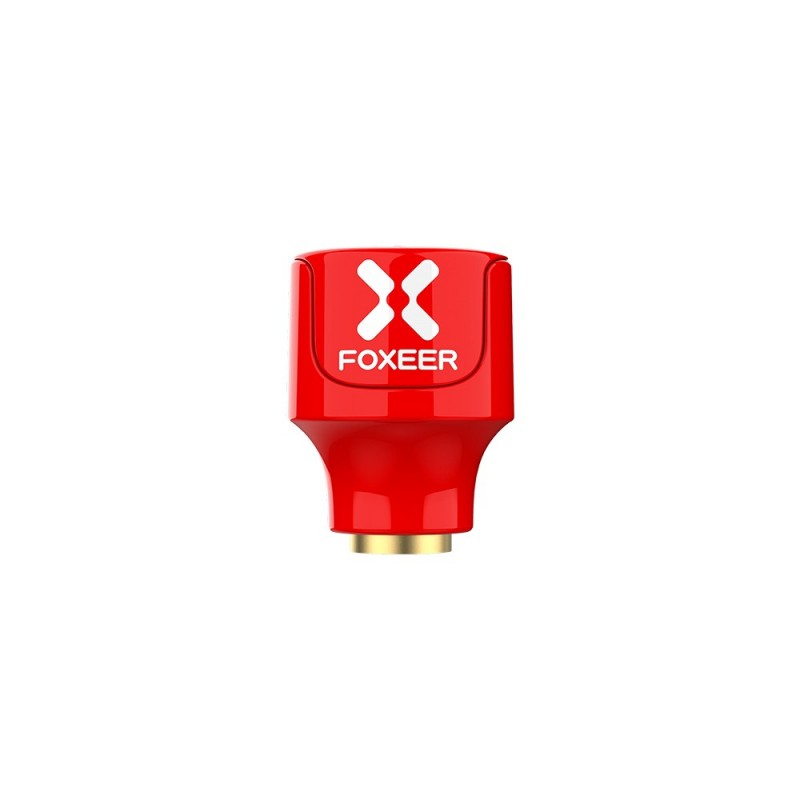

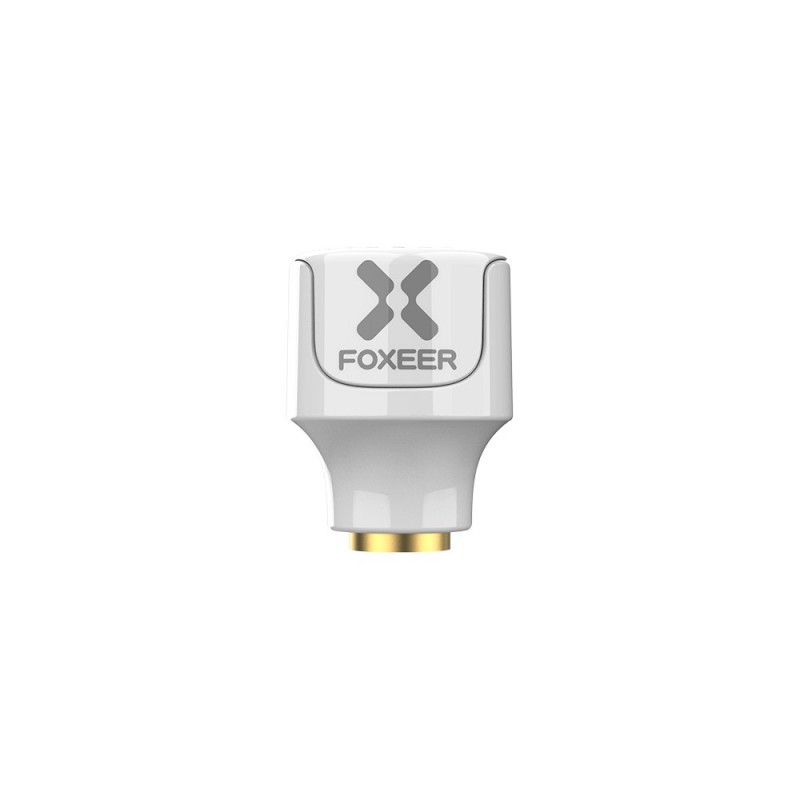

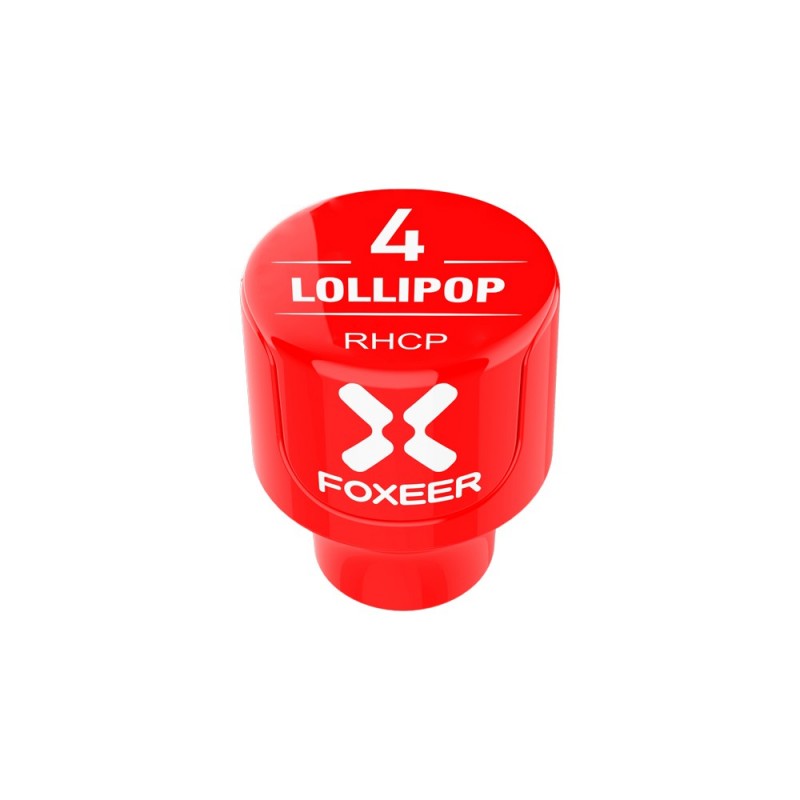

Foxeer Lollipop 4 Stubby 5.8GHz 2.6dBi Antenna (SMA RHCP)

Foxeer Lollipop 4 Stubby 5.8GHz 2.6dBi Antenna (SMA RHCP)

Ultra-Durable. Low Profile. High Performance. The Foxeer Lollipop 4 takes the proven performance of the Lollipop series and packs it into a “Stubby” form factor for maximum durability. Each antenna is constructed with a gold-plated connector and a high-strength PC+ABS shell, making it one of the toughest antennas on the market.

With a near-perfect axial ratio and a high gain of 2.6dBi, the Lollipop 4 provides excellent signal penetration and range without the bulk of a full-sized antenna. This 2-piece set is specifically designed for pilots who need a reliable, crash-resistant 5.8GHz link that won’t compromise the quad’s center of gravity or aerodynamics.

Key Features

• Stubby Design: Low-profile height reduces the risk of damage during crashes and prop strikes.

• Dual-Structure Design: Combined PC+ABS shell is impact-resistant and hermetically sealed to protect internal elements.

• Gold-Plated SMA: High-quality gold-plated connector ensures a low-resistance, stable connection to your VTX.

• Near-Perfect Circularity: Sophisticated engineering ensures a consistent signal regardless of the quad’s orientation.

• Wide Bandwidth: Covers the full 5.8GHz FPV range (5.5GHz-6.0GHz) with high efficiency.

Specifications

• Gain: 2.6dBi

• Frequency: 5.8GHz (5.5GHz-6.0GHz)

• Polarization: RHCP

• Connector: SMA

• Axial Ratio: Close to 1

• V.S.W.R: <1.07 (at center frequency)

• Weight: ~4.8g per antenna

• Dimensions: 17 x 23 mm (Head)

• Includes: 2x Antennas
