HOTA P6 – Dual Channel DC Charger 300Wx2

HOTA P6 Dual Channel Smart Charger (600W DC) – Compact High-Power Balance Charger

Dual-channel charging power. Intelligent UI interface. Pocket-sized bench performance.

Designed for pilots who demand fast, safe, and reliable field charging, the HOTA P6 Dual Channel Smart Charger delivers up to 600W total DC output (300W × 2) in an ultra-compact, portable footprint. Engineered with high-efficiency internal power architecture, the P6 comfortably charges two 1S–6S LiPo, LiHV, LiFe, or NiMH battery packs simultaneously without performance compromise or thermal bottlenecking.

Featuring a crisp 2.4-inch color IPS sunlight-readable display, the HOTA P6 makes monitoring cell voltages, internal resistance (IR), charge rates, and capacity simple and intuitive. Equipped with advanced safety management protocols—including over-current, over-voltage, thermal protection, and short-circuit prevention—it keeps your battery inventory protected both on the bench and at the field. Built-in Type-C USB output allows you to power field accessories or charge your radio transmitter and mobile devices directly from the unit.

Key Performance Features

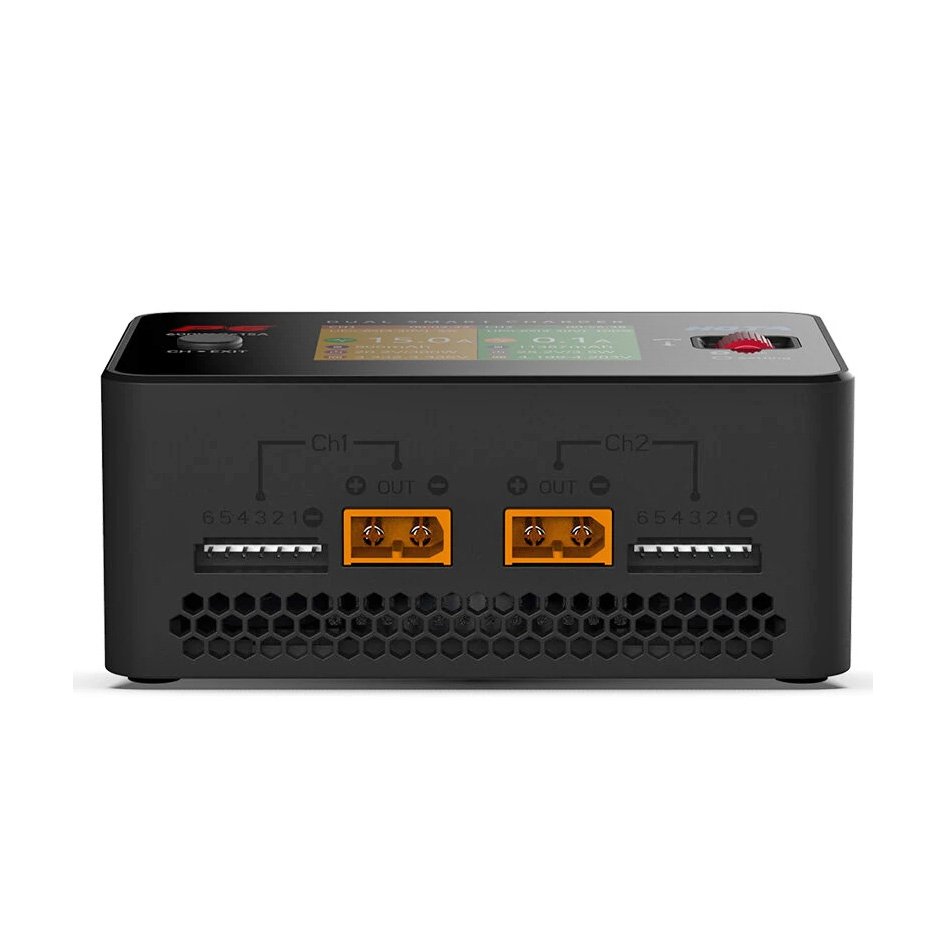

• Dual-Channel Independent Charging: Delivers up to 300W per channel (15A max per port) to balance charge two batteries at the same time.

• Wide Battery Chemistry Support: Compatible with LiPo, LiHV, LiFe, Lilon, NiMH, Cd, and Pb battery chemistries (1S to 6S).

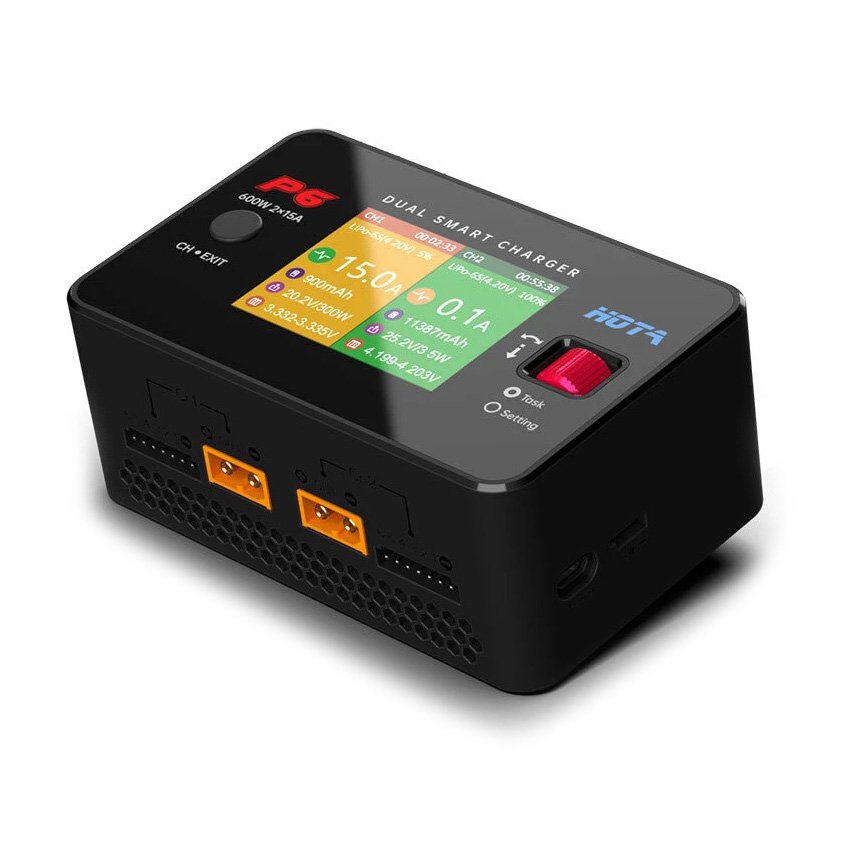

• Vibrant IPS Color Display: High-resolution 2.4″ display offers clear, real-time telemetry readout for cell-by-cell balance voltages and internal resistance.

• Type-C USB Output: Built-in USB port allows quick power delivery for action cameras, transmitters, or mobile phones.

• Advanced Safety Systems: Features over-temperature protection, reverse polarity protection, short-circuit prevention, and auto cutoff.

Technical Specifications

• Brand: HOTA

• Model: P6 (DC Version)

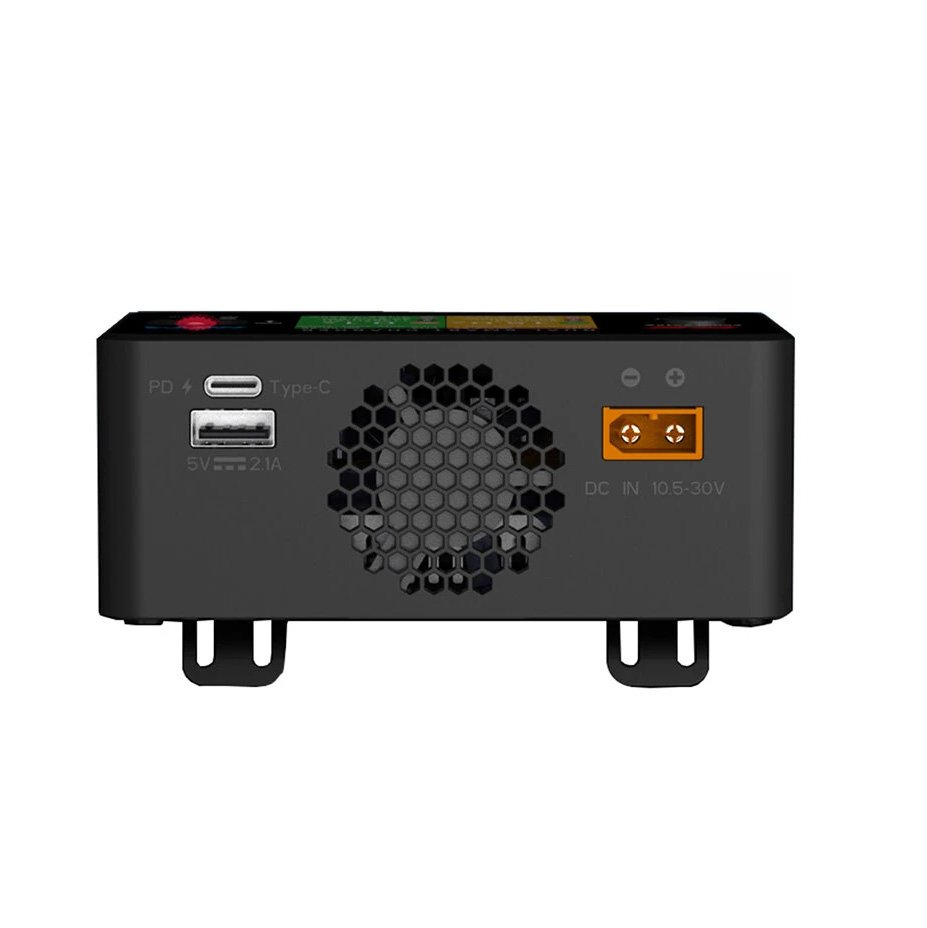

• Input Voltage: DC 10.5V – 30V

• Charge Power: 600W Total (Max 300W × 2 Channels)

• Charge Current: 0.1A – 15.0A × 2

• Discharge Power: Internal Max 8W × 2 (Regenerative External Discharge up to 300W × 2)

• Balance Current: 1.0A per cell

• Supported Battery Types:

  • LiPo / LiHV / LiFe / Lilon: 1S – 6S

  • NiMH / NiCd: 1S – 16S

  • Pb (Lead Acid): 1S – 12S

• Display: 2.4″ IPS Color Screen (320 × 240)

• USB Output: 5V / 2.1A (Type-C)

• Dimensions: 108mm × 105mm × 47mm

• Weight: ~415g

Package Includes

• 1 x HOTA P6 600W DC Smart Charger

• 1 x User Manual

Pro Bench Tip: To reach the full 600W charging output, power the HOTA P6 with a high-capacity 24V–30V DC power supply or a large 6S field battery pack. Keep your charge leads short and check individual cell internal resistance (IR) regularly to spot aging packs early!
