KONKER 2267 2150KV FPV Racing Motor

KONKER 2267 2150KV FPV Racing Motor

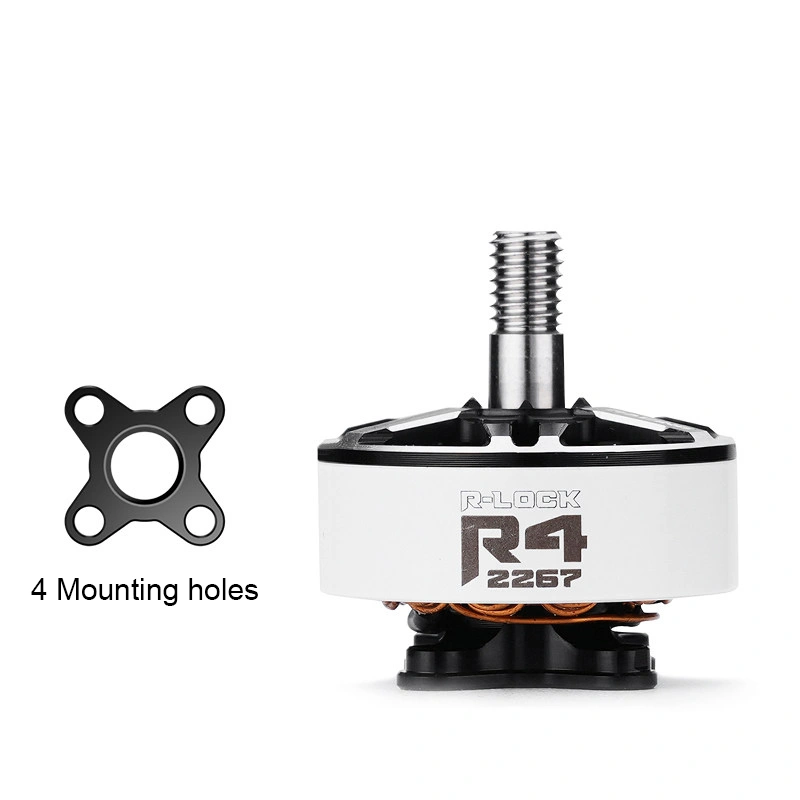

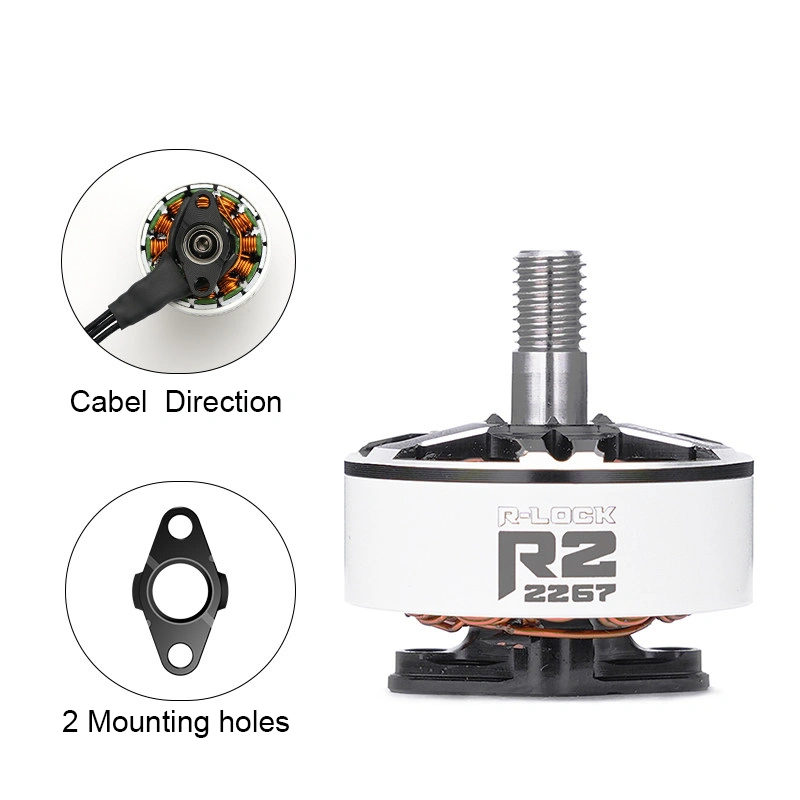

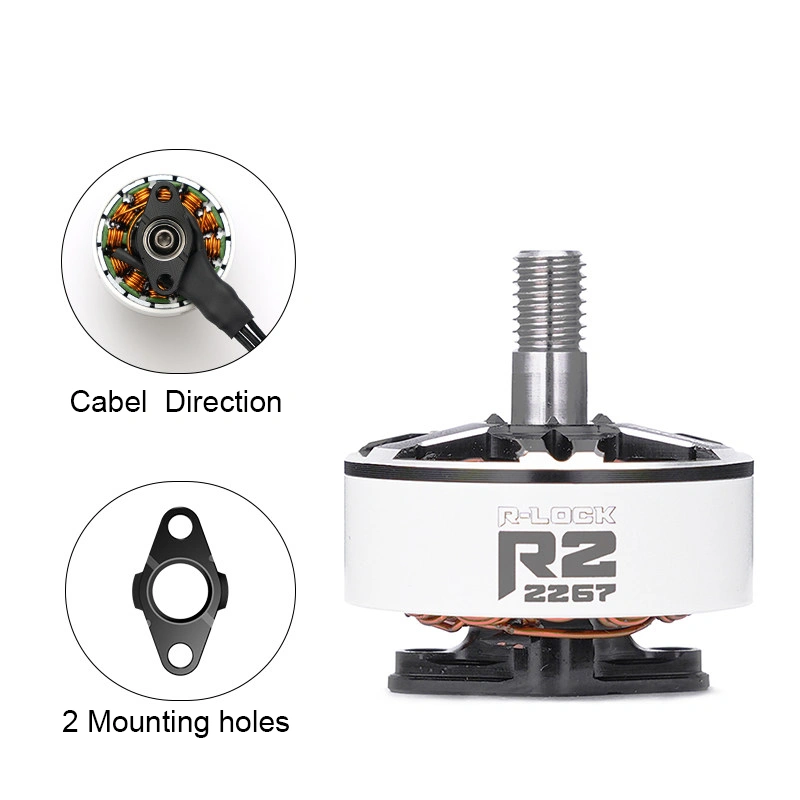

Built for 6S racing. The KONKER 2267 2150KV from MAD Components is a 6S race motor with a 22 x 6.7mm stator, delivering up to 2214g of thrust from a 26g motor. Available as R2 CW, R2 CCW (2 mounting holes, set cable direction) and R4 (4 mounting holes).

Specifications

• KV: 2150KV
• Stator: 22 x 6.7mm
• Motor Size: Ø26.6 x 28.5mm
• Shaft: M5, 11.1mm
• Mounting: Ø16mm, M3 x 2 (R2) or M3 x 4 (R4)
• Cells: 6S (22.2V)
• Internal Resistance: 48mΩ
• No Load Current: 1.2A @10V
• Max Current: 49.45A
• Max Power: 1203.7W
• Max Thrust: 2214g (51466 prop, 6S)
• Cable: 150mm, 20AWG PTFE
• Weight: 26g (without cable)
• Winding / Magnet Temp. Resistance: 240°C / 180°C
• Recommended Props: Gemfan 51366 / 51466
• Recommended ESC: 6S 60A 4-in-1
