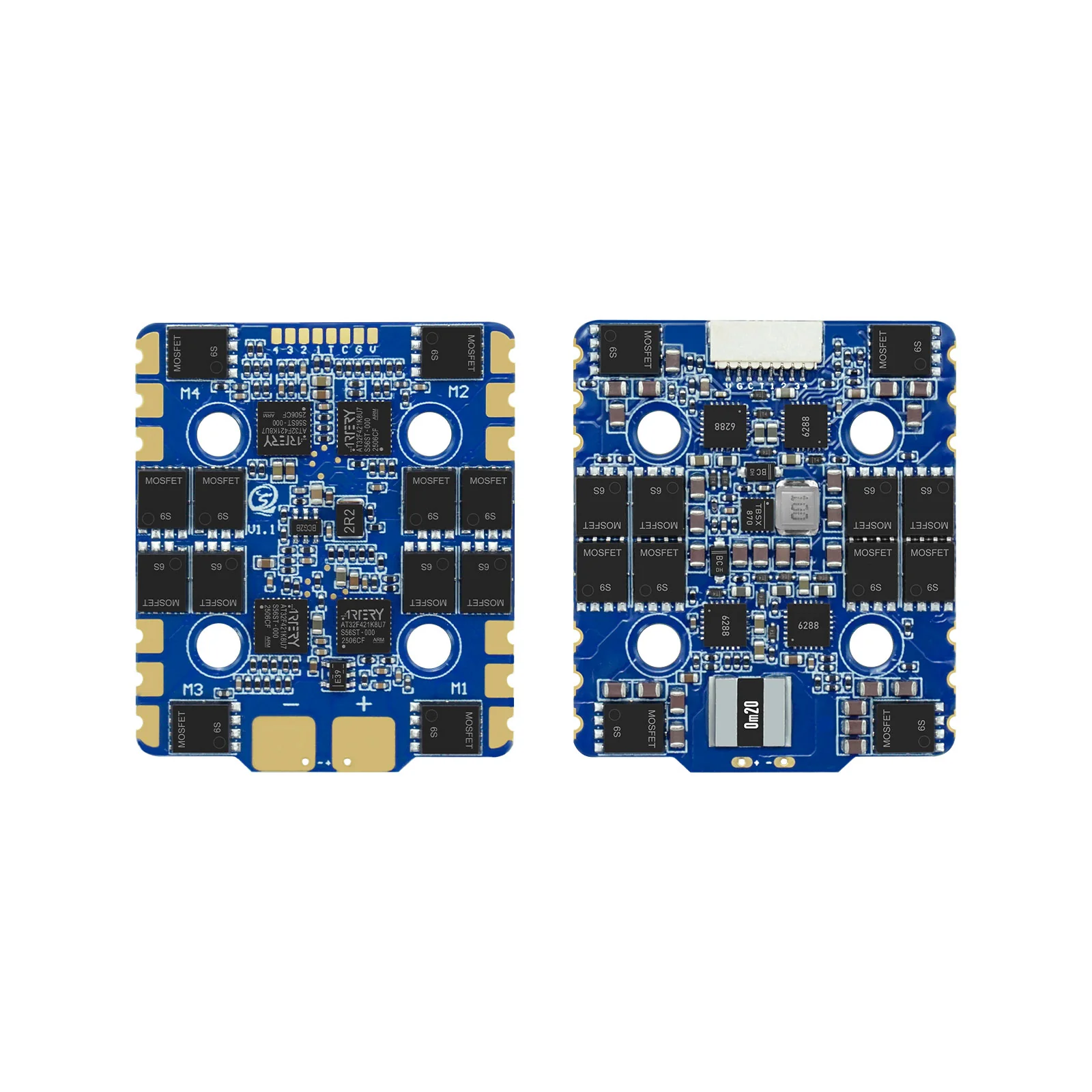

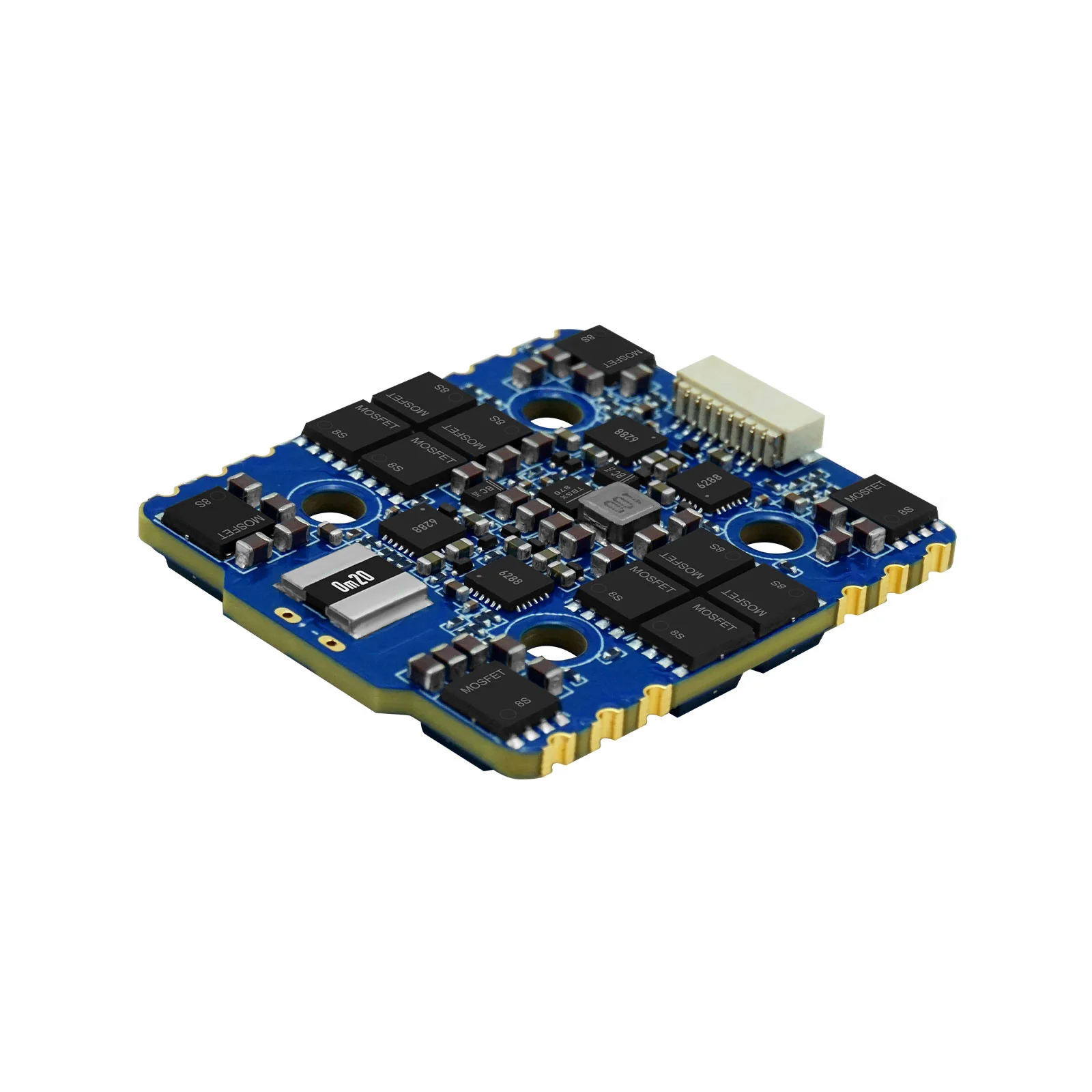

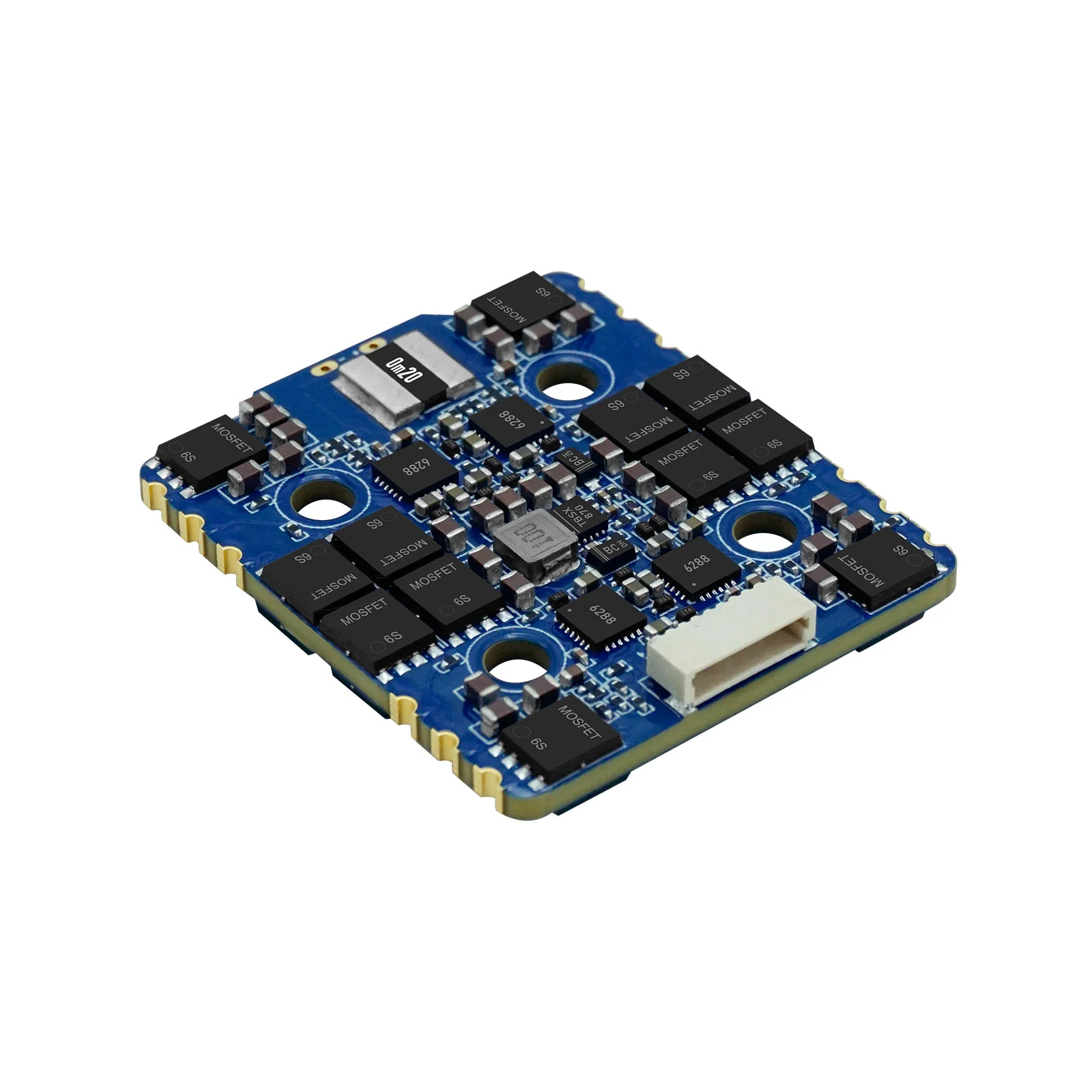

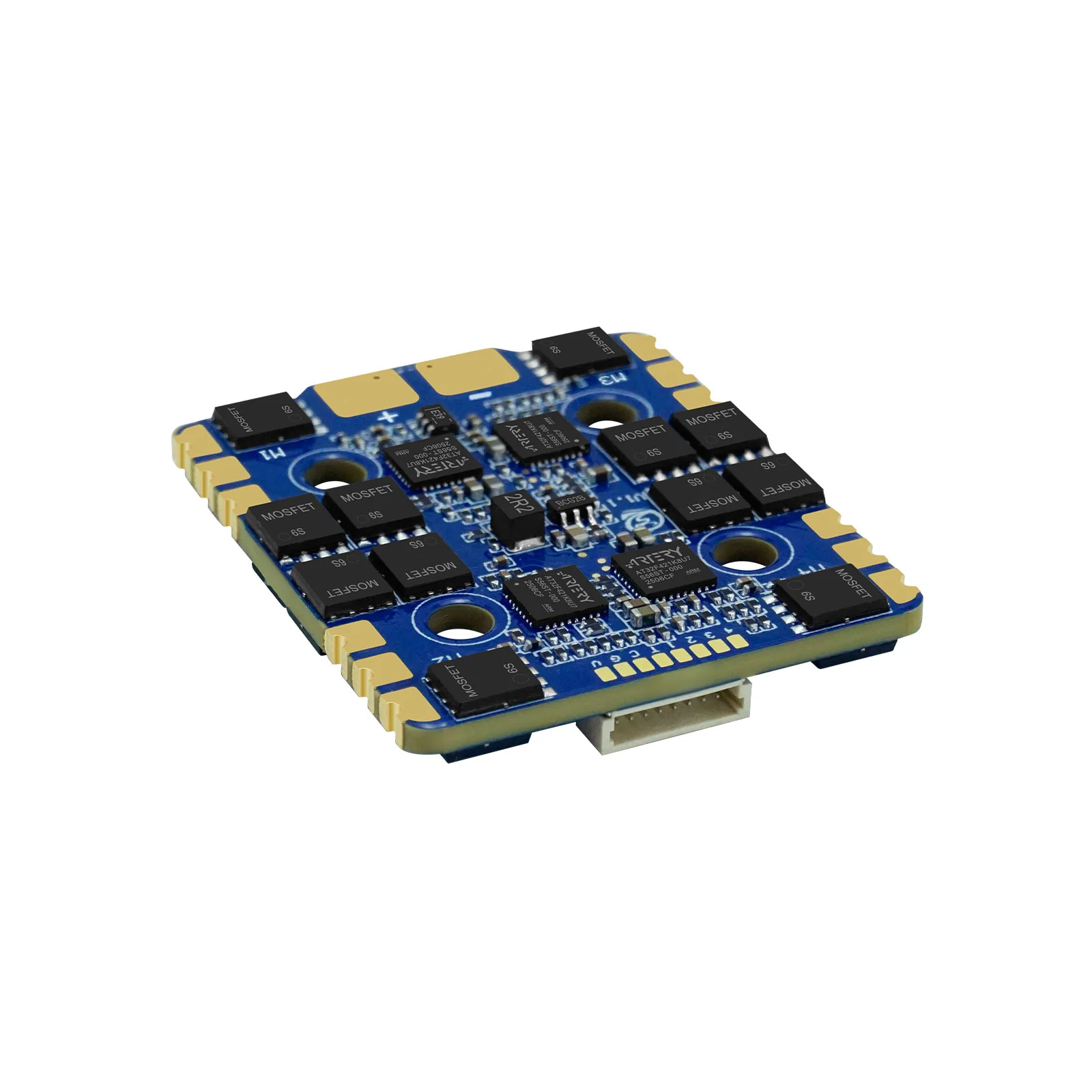

SEQURE Blueson A1 6S 65A/8S 70A 4IN1 ESC with AM32 128KHz
Price range: ₪175.00 through ₪260.00
Product Description:
(1) High-quality ultra-high copper thickness PCB ensures the current carrying capacity while improving heat dissipation. Equipped with top-level MOSFET, it enhances flight performance and makes you enjoy the fun of flying in the air.
(2) Equipped with a high-speed 32-bit processor, it supports full-segment dynamic PWM variable refresh rate of 8KHz-128KHz, with more precise speed response and smoother throttle control.
(3) Supports 6S/8S wide range voltage input, allowing your aircraft to adapt to power batteries of different specifications, improving the versatility of the device.
(4) With 20*20mm installation hole spacing, it is tailor-made for racing drones and easy to install.
(5) ESC reserves a large area of solder pad to effectively reduce the difficulty of soldering.
Parameters of Product:
| Model | Blueson A1 |
| Processor
|
AT32F421 |
| Firmware Version
|
AM32 or BLHeli_32 |
| PWM Frequency
|
8KHz-128KHz |
| Working Voltage
|
2-6S / 2-8S Lipo / LiHV |
| Continuous Current
|
6S 65A / 8S 70A |
| Peak Current
|
6S 120A / 8S 150A |
| Support Protocol
|
Dshot600/300/150,Oneshot,Multishot,PWM |
| Telemetry Return
|
YES |
| Galvanometer
|
YES |
| BEC | NO |
| Mounting Hole Spacing
|
20*20mm, Φ4mm/M3 |
| Product Size
|
42.5*36*7mm(L*W*H) |

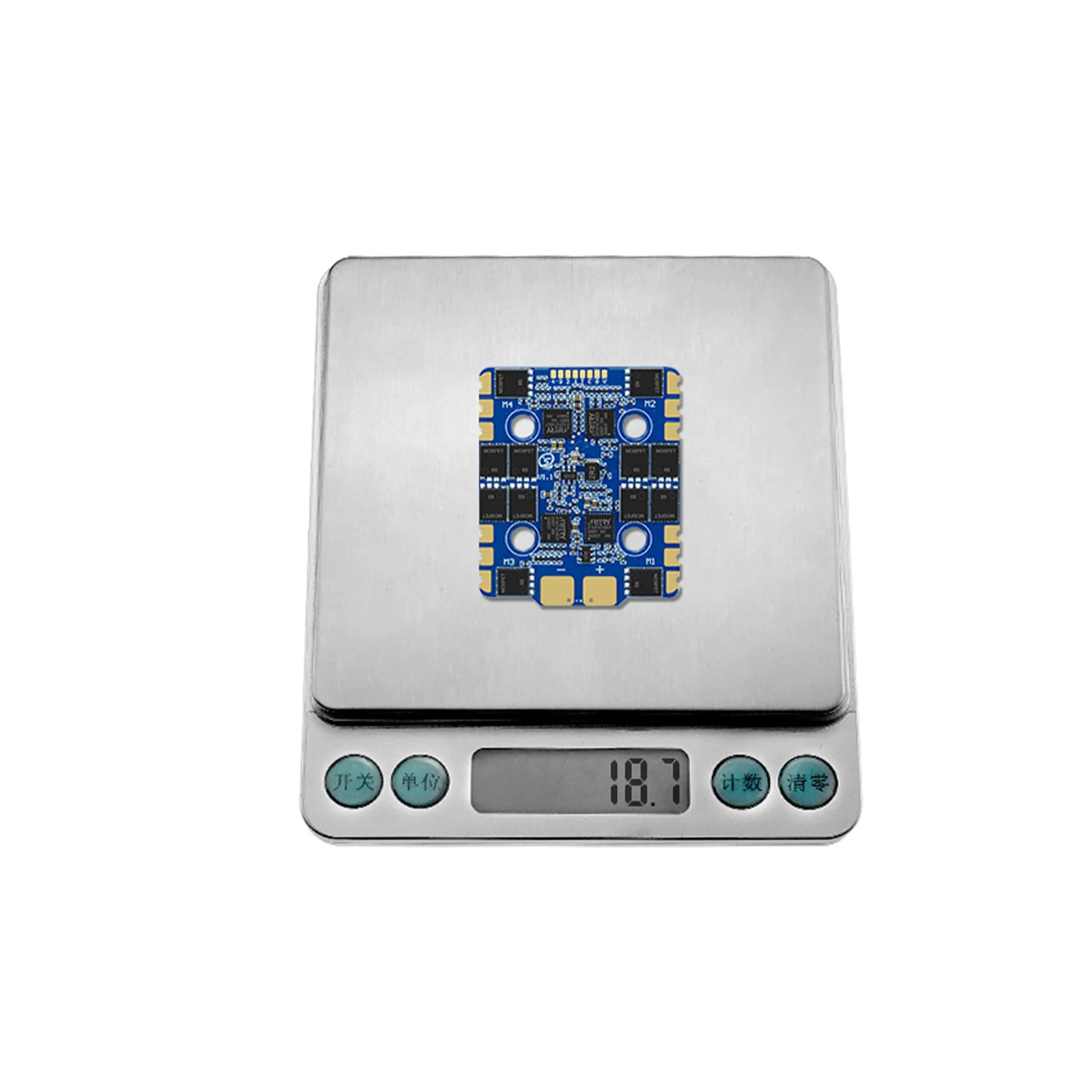

| Product Weight
|
19g |

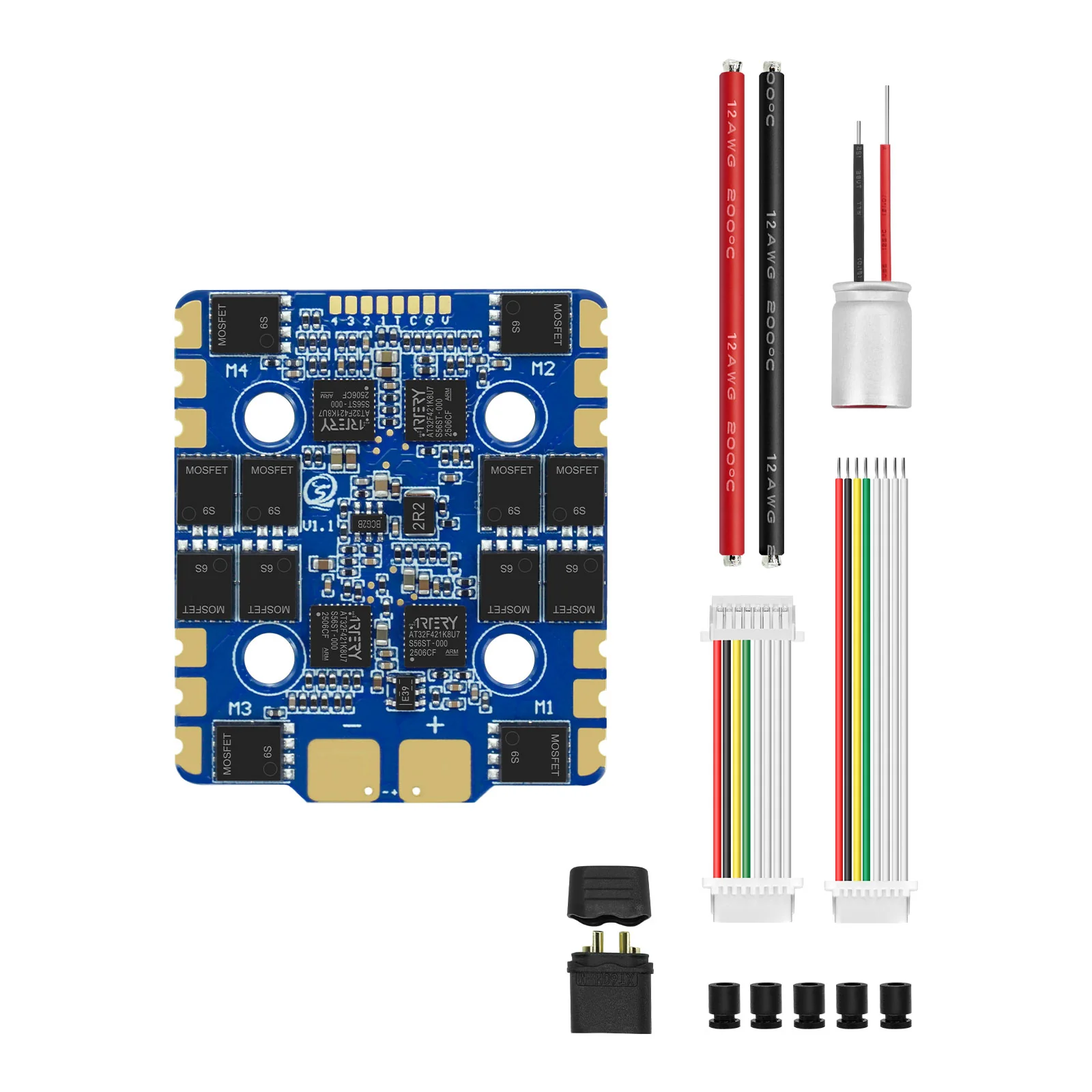

Package includes:
SEQURE Blueson A1 4IN1 ESC × 1
30AWG 40mm reverse double plug SH1.0-8P cable × 1
30AWG 60mm single plug SH1.0-8P cable × 1
12AWG 100mm power cable (black/red)×2
XT60H-M black male connector×1
35V 680UF solid capacitor×1
M3*8mm shock absorbing washer (black) × 5

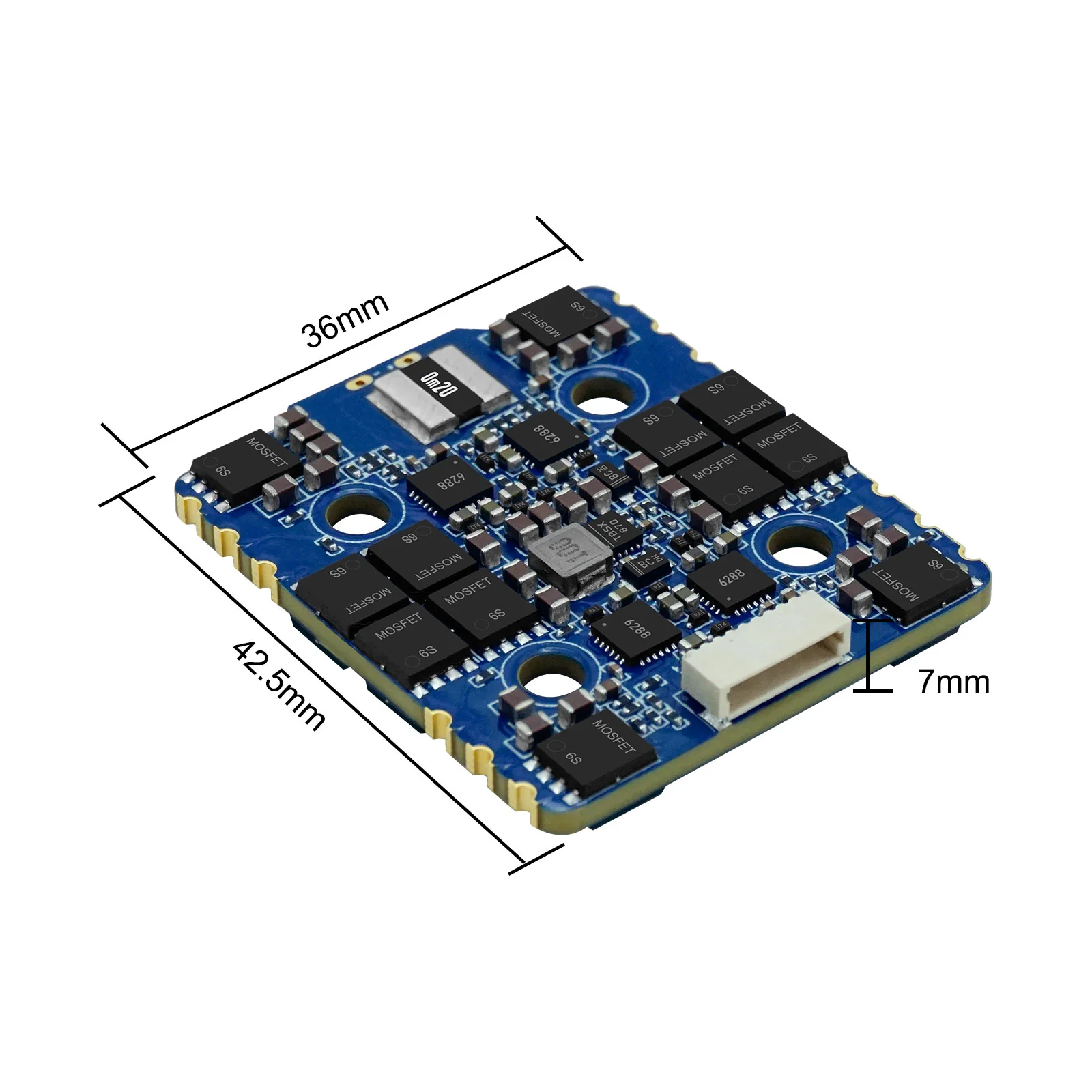

Overall Dimension:
(1) Product Size:42.5*36*7mm
Net Weight Of Product:19g
(2) Package Size: 90*60*35.5mm
Packing Weight: 63g
(3) Package Size (Including Outer Carton)：155*105*40mm
Packing Weight (Including Outer Carton)：105g
In stock
