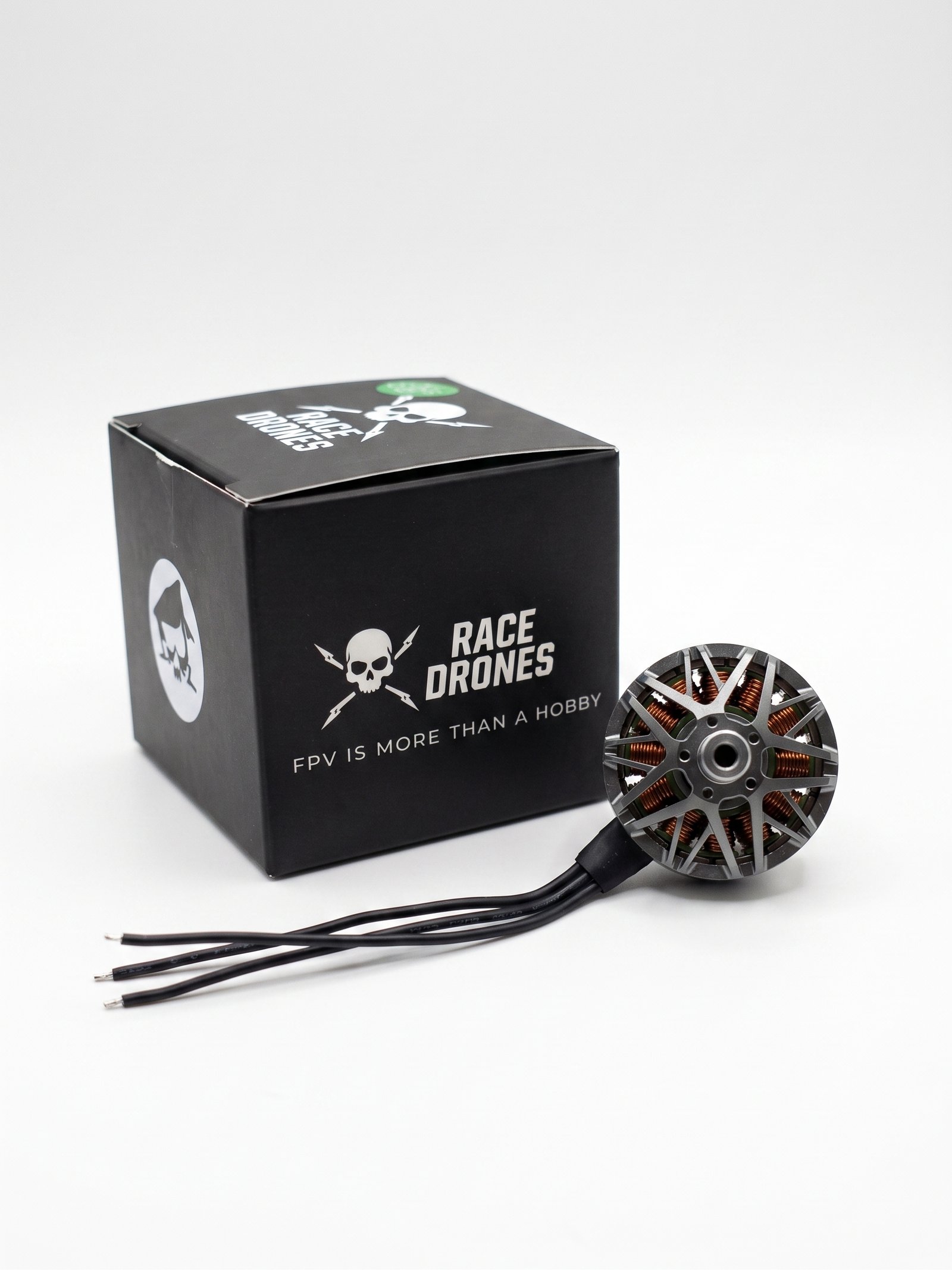

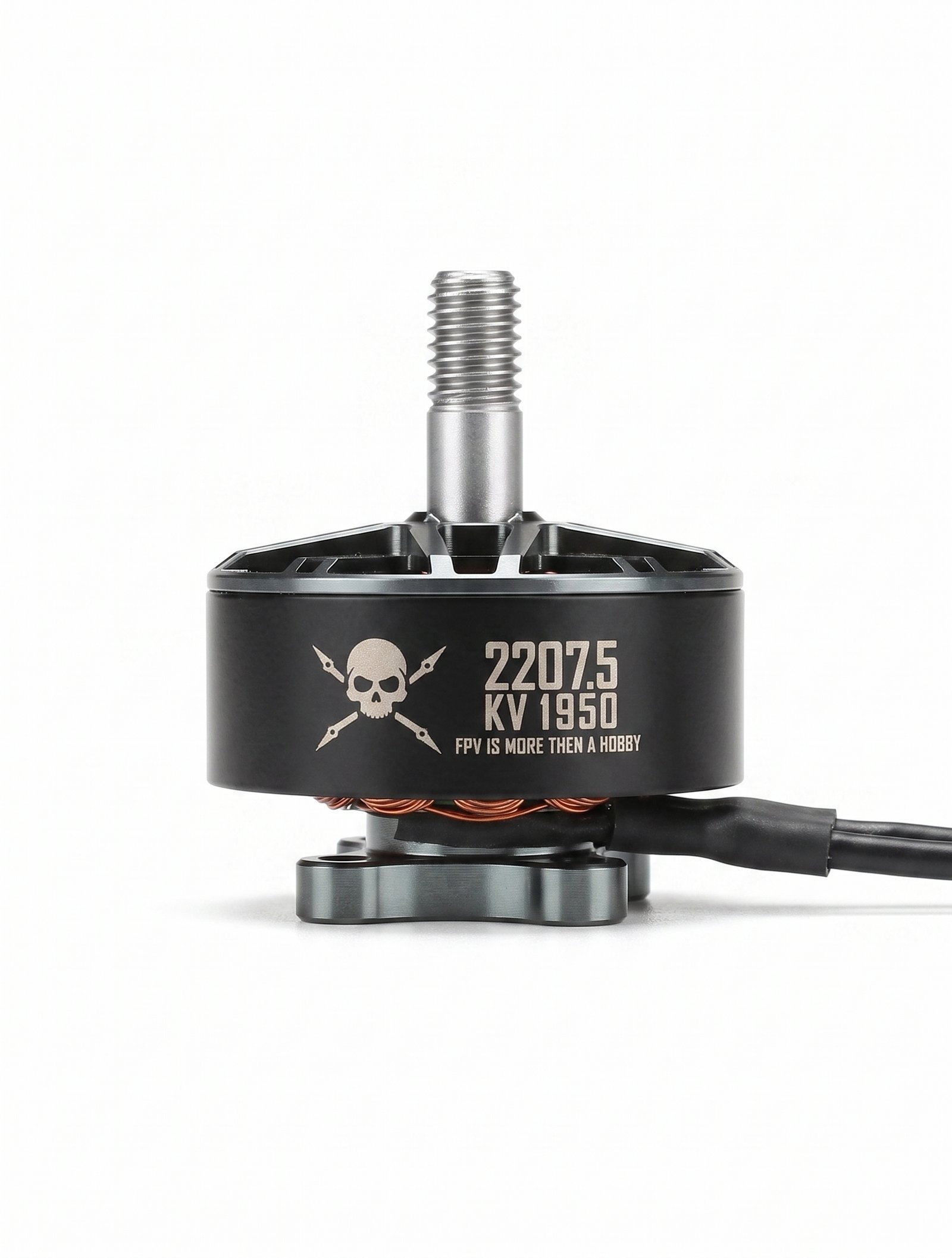

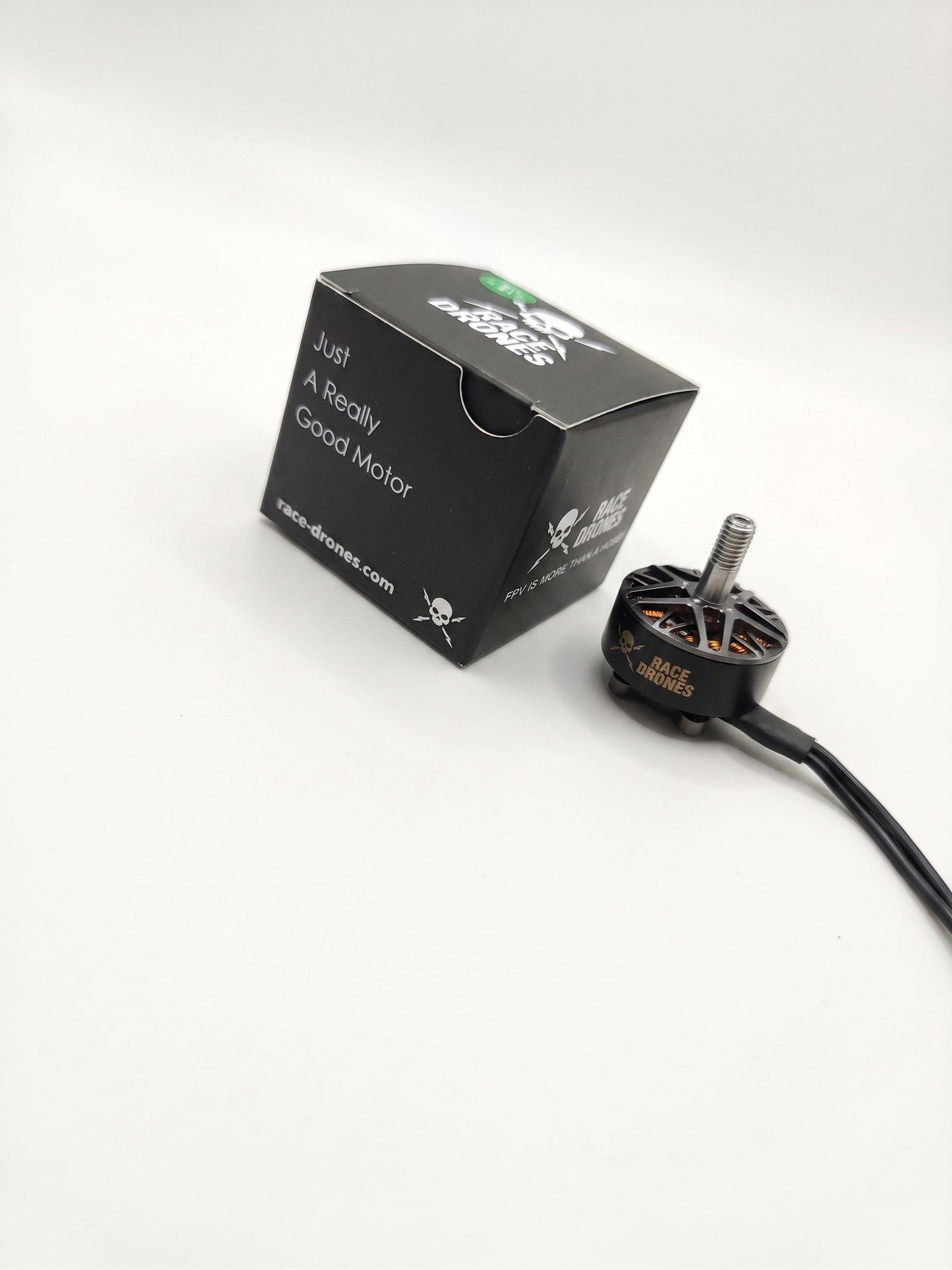

Race-Drones 2207.5 High-Speed FPV Racing & Freestyle Motors (2100KV / 1950KV)

Race Drones Edition 2207.5 Brushless Motors (1950KV / 2100KV) – High-Performance 6S FPV Racing & Freestyle Motors

Precision-engineered torque. Explosive throttle response. Unmatched thermal efficiency.

Co-developed on the legendary MAD BSC motor platform, the Race Drones Edition 2207.5 brushless motors bring industrial-grade motor manufacturing standards directly to modern 6S FPV racing and freestyle builds. Featuring a high-torque 2207.5 stator volume, curved N52SH arc magnets, and ultra-tight airgap tolerances, these motors deliver instantaneous spool-up, crisp throttle resolution, and superior thermal headroom during aggressive full-throttle pulls.

Available in two performance-tuned KV options to match your exact flying style:

• 1950KV Edition: Optimized for ultra-smooth 6S freestyle lines, technical bandos, and long-range efficiency, providing linear throttle control with extended flight times.

• 2100KV Edition: Engineered for high-speed 6S track racing and explosive freestyle punch-outs, delivering extreme top-end speed and raw cornering authority out of tight hairpins.

Constructed with high-strength aviation-grade aluminum bell housings, a hollow 5mm titanium/steel shaft, and high-RPM Japanese NMB bearings, the Race Drones 2207.5 series absorbs severe gate collisions and hard concrete impacts while keeping vibration levels and gyro noise exceptionally low for effortless Betaflight PID tuning.

Key Performance Features

• MAD BSC Engineering Architecture: Built using high-purity copper windings and low-loss silicon steel stator laminations for maximum electrical efficiency and cooler running temperatures.

• Curved N52SH Heat-Resistant Arc Magnets: Maintains high magnetic strength and resists demagnetization under heavy thermal loads during high-power 6S race heats.

• 1950KV vs 2100KV Dual KV Options: Choose 1950KV for buttery mid-throttle control and maximum flight times, or 2100KV for maximum top-end speed and explosive acceleration.

• Ultra-Durable Bell & Shaft Design: Heavy-duty casing paired with a reinforced 5mm prop shaft to withstand high-speed crashes and propeller impacts.

• Standard 16×16mm Mounting: Universal M3 mounting footprint fits all standard 5″ to 6″ FPV freestyle and racing frame arms.

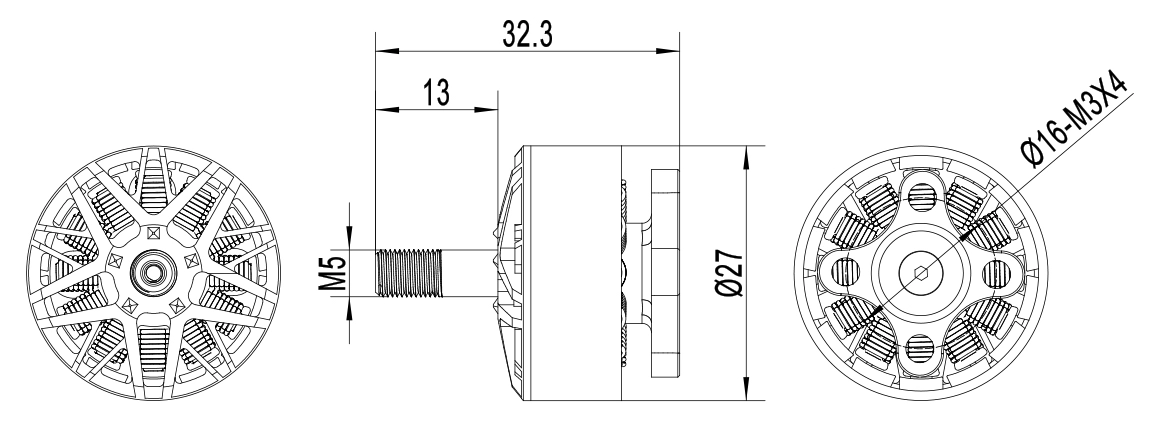

Technical Specifications

• Brand / Series: Race Drones Edition (MAD BSC Platform)

• Stator Dimensions: 2207.5

• KV Options: 1950KV / 2100KV

• Input Voltage: 6S LiPo (22.2V – 25.2V)

• Configuration: 12N14P

• Shaft Diameter: 5mm

• Mounting Pattern: 16 × 16mm (M3)

• Bearings: High-Speed Japanese NMB

• Magnet Type: N52SH Curved Arc Magnets

• Weight: ~32g (including short wires)

• Recommended Propeller Size: 5″ to 5.5″ Tri-Blade Racing/Freestyle Props

Package Includes

• 1 x Race Drones Edition 2207.5 Brushless Motor (Selected KV Variant)

• 1 x M5 Aluminum Flanged Lock Nut

• 4 x M3 Motor Mounting Screws

Pro Bench Tip: For 2100KV high-RPM 6S racing setups, pair these motors with an ESC capable of at least 55A–65A continuous current and set your BLHeli_32/AM32 PWM frequency to 48kHz or 96kHz for optimum top-end efficiency!
