RCinPOWER Wasp Major EVO 2160KV

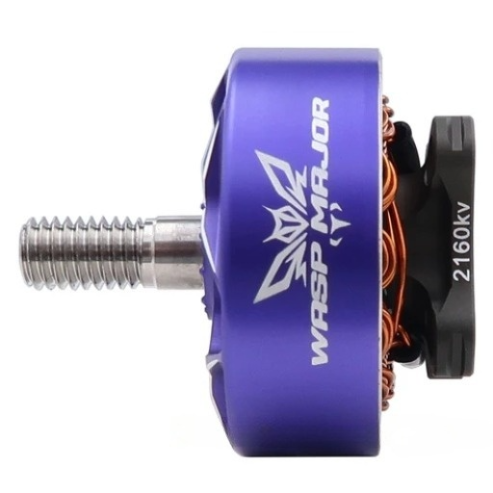

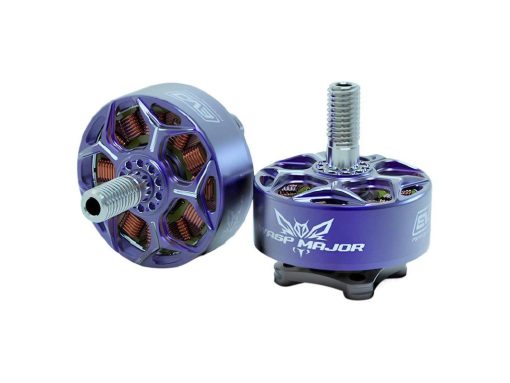

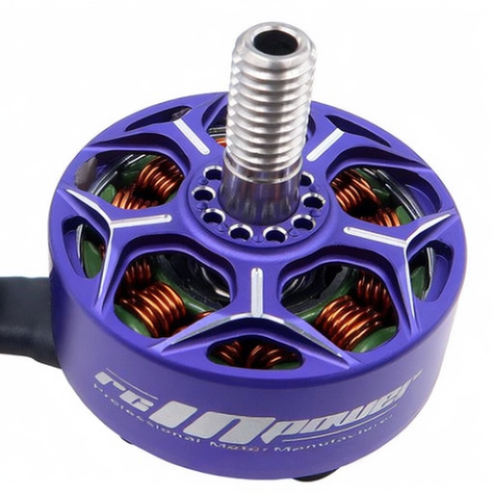

RCINPOWER Wasp Major EVO 2207 2160KV Brushless Motor (6S) – Lightweight Powerhouse for 5″ FPV Racing & Freestyle

Unmatched throttle linearity. Explosive top-end speed. Lightweight agility.

The RCINPOWER Wasp Major EVO 2207 represents the next generation of competitive FPV drone propulsion. Engineered specifically for high-stakes 5″ racing and ultra-responsive freestyle builds, the 2160KV Wasp Major EVO delivers an incredible thrust-to-weight ratio designed to give pilots aggressive punchouts and pin-point throttle control around tight gate corners.

Built with RCINPOWER’s legendary attention to tolerance and balance, the Wasp Major EVO features a lightweight, high-durability bell design coupled with high-grade N52 curved arc magnets and single-strand copper windings. Operating efficiently on 5S to 6S power, this motor minimizes rotational inertia for instantaneous RPM shifts, reducing prop wash and giving your flight controller razor-sharp PID response.

Key Performance Features

• Optimized 2207 Stator Design: Provides the ideal balance of low-end torque for quick exit speeds and high-RPM power on full-throttle straightaways.

• Lightweight EVO Bell Structure: Engineered to reduce rotational weight without sacrificing crash resilience, improving handling agility and motor acceleration.

• High-Grade N52 Arc Magnets: Maximum magnetic efficiency and tight air gaps ensure silky smooth throttle feel and reduced operating temperatures.

• 5S–6S Voltage Ready: The high-performance 2160KV rating is tuned for hyper-aggressive 6S racing or high-voltage 5S setups.

• Precision Dynamic Balancing: Each motor leaves the factory dynamically balanced to reduce micro-vibrations, giving you cleaner gyro data and smoother HD footage.

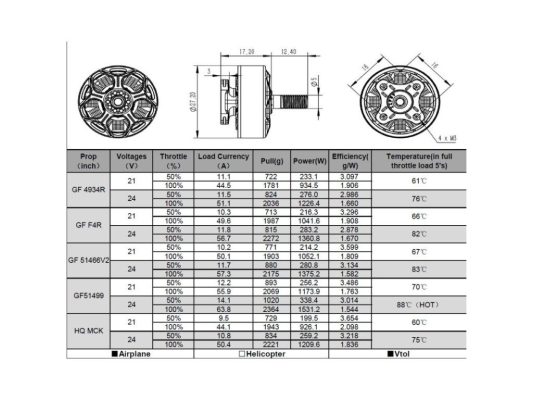

Technical Specifications

• Brand: RCINPOWER

• Model: Wasp Major EVO 2207

• KV Rating: 2160KV

• Stator Diameter: 22mm

• Stator Height: 7mm

• Input Voltage: 5S – 6S LiPo

• Configuration: 12N14P

• Magnet Type: N52H Curved Arc Magnets

• Winding: Single-Strand High-Temperature Copper

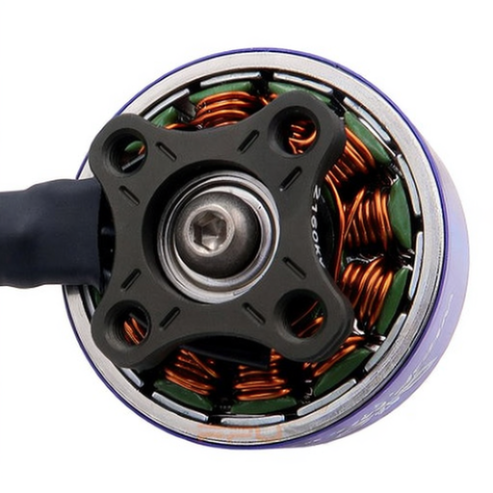

• Mounting Pattern: Standard 16x16mm (M3)

• Shaft Diameter: High-Strength Hollow Steel / Titanium Alloy Shaft

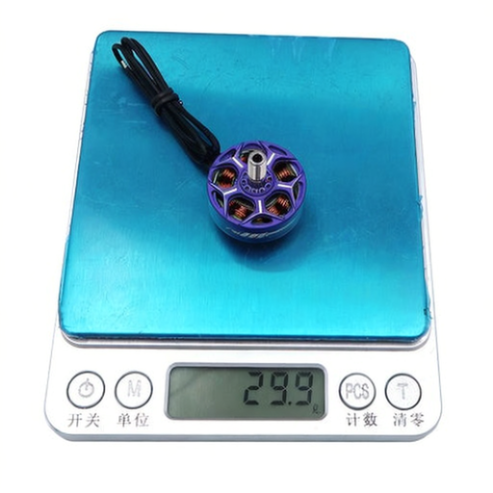

• Weight: ~30g (including short wires)

• Recommended Propellers: 5″ to 5.1″ Racing / Freestyle Props

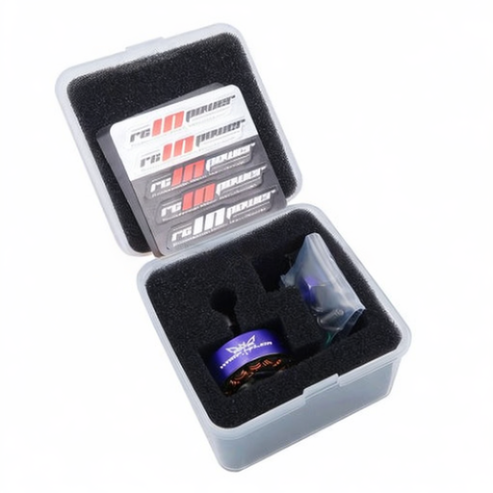

Package Includes

• 1 x RCINPOWER Wasp Major EVO 2207 2160KV Brushless Motor

• 1 x Low-Profile M5 Flanged Lock Nut

• 4 x M3 Frame Mounting Screws

Pro Bench Tip: Pair these 2160KV motors with a lightweight, high-C battery (like the DOGCOM 1600mAh 180C 6S) and lightweight 5″ props for maximum corner acceleration on tight racing tracks!
