SEQURE Blueson A2 6S 65A 4IN1 ESC with AM32 128KHz
₪175.00
Product Description:
(1) High-quality ultra-high copper thickness PCB ensures the current carrying capacity while improving heat dissipation. Equipped with top-level MOSFET, it enhances flight performance and makes you enjoy the fun of flying in the air.
(2) Equipped with a high-speed 32-bit processor, it supports full-segment dynamic PWM variable refresh rate of 8KHz-128KHz, with more precise speed response and smoother throttle control.
(3) Supports 6S/8S wide range voltage input, allowing your aircraft to adapt to power batteries of different specifications, improving the versatility of the device.
(4) 30.5mm installation hole spacing is more suitable for large-sized load-type flight vehicles and is easy to install.
(5) The angled extended large-area pad design not only makes the motor circuit layout more refined, but also effectively simplifies the welding process.
Parameters of Product:
| Model | Blueson A2 |
| Processor | AT32F421 |
| Firmware Version | AM32 or BLHeli_32 |
| PWM Frequency | 8KHz-128KHz |
| Working Voltage | 2-6S / 2-8S Lipo / LiHV |
| Continuous Current | 6S 65A / 8S 70A |
| Peak Current | 6S 120A / 8S 150A |
| Support Protocol | Dshot600/300/150,Oneshot,Multishot,PWM |
| Telemetry Return | YES |
| Galvanometer | YES |
| BEC | NO |
| Mounting Hole Spacing | 30.5*30.5mm, Φ4mm/M3 |
| Product Size | 45.5*42.5*6mm(L*W*H) |
| Product Weight | 17g |

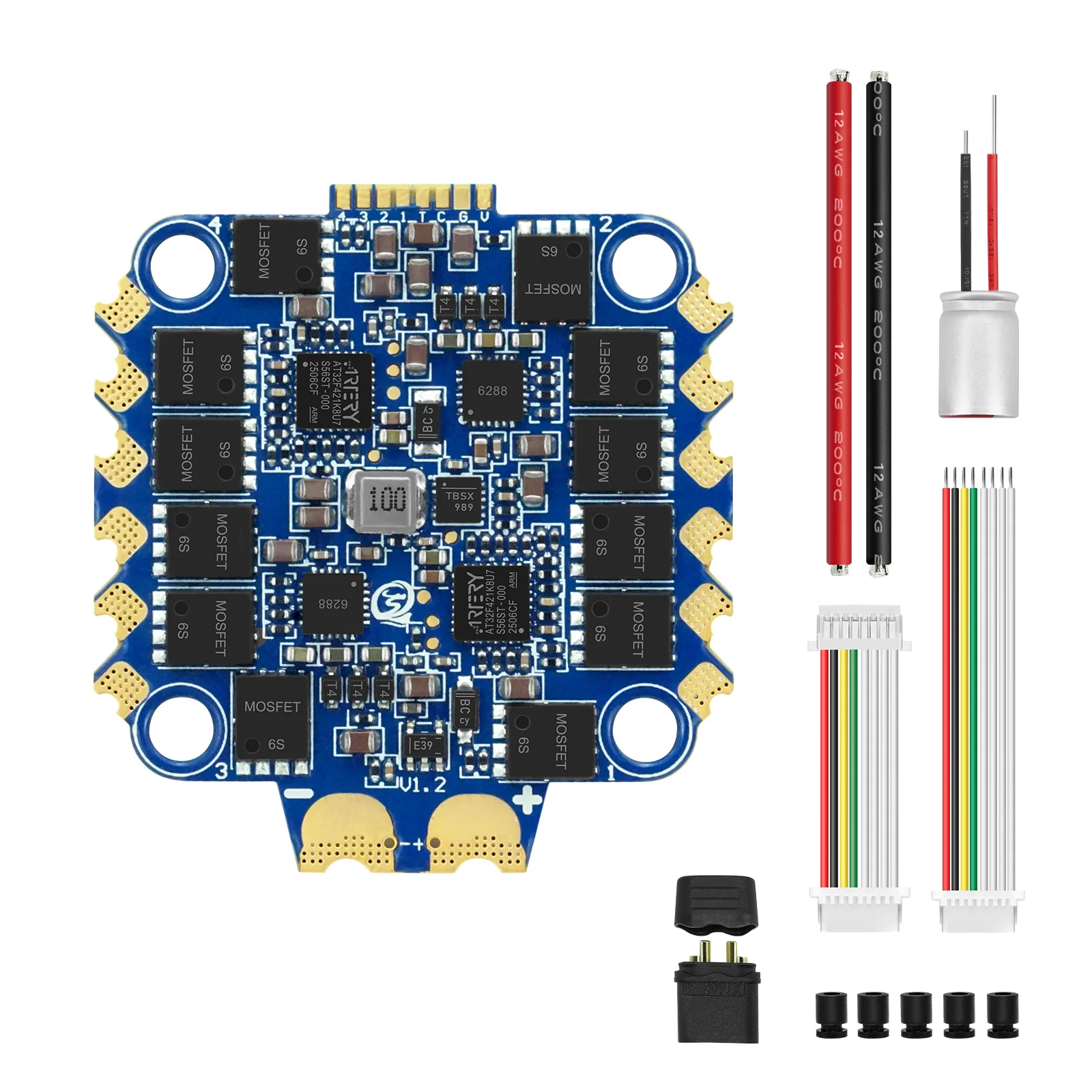

Package included:
SEQURE Blueson A2 4IN1 ESC × 1
30AWG 40mm reverse double plug SH1.0-8P cable × 1
30AWG 60mm single plug SH1.0-8P cable × 1
12AWG 100mm power cable (black/red)×2
XT60H-M black male connector×1
35V 680UF solid capacitor×1
M3*8mm shock absorbing washer (black) × 5
Overall Dimension:

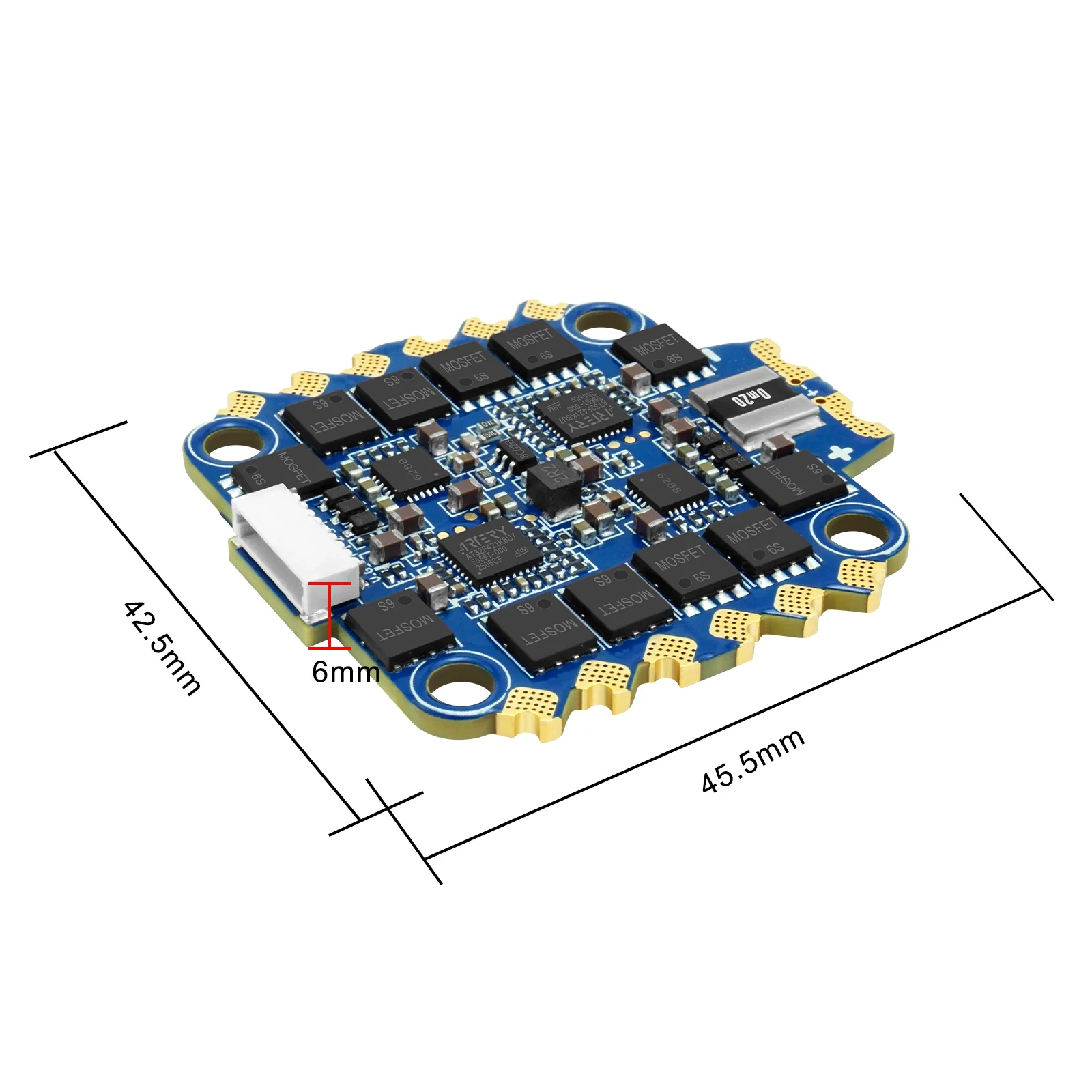

（1）Product Size: 45.5*42.5*6mm

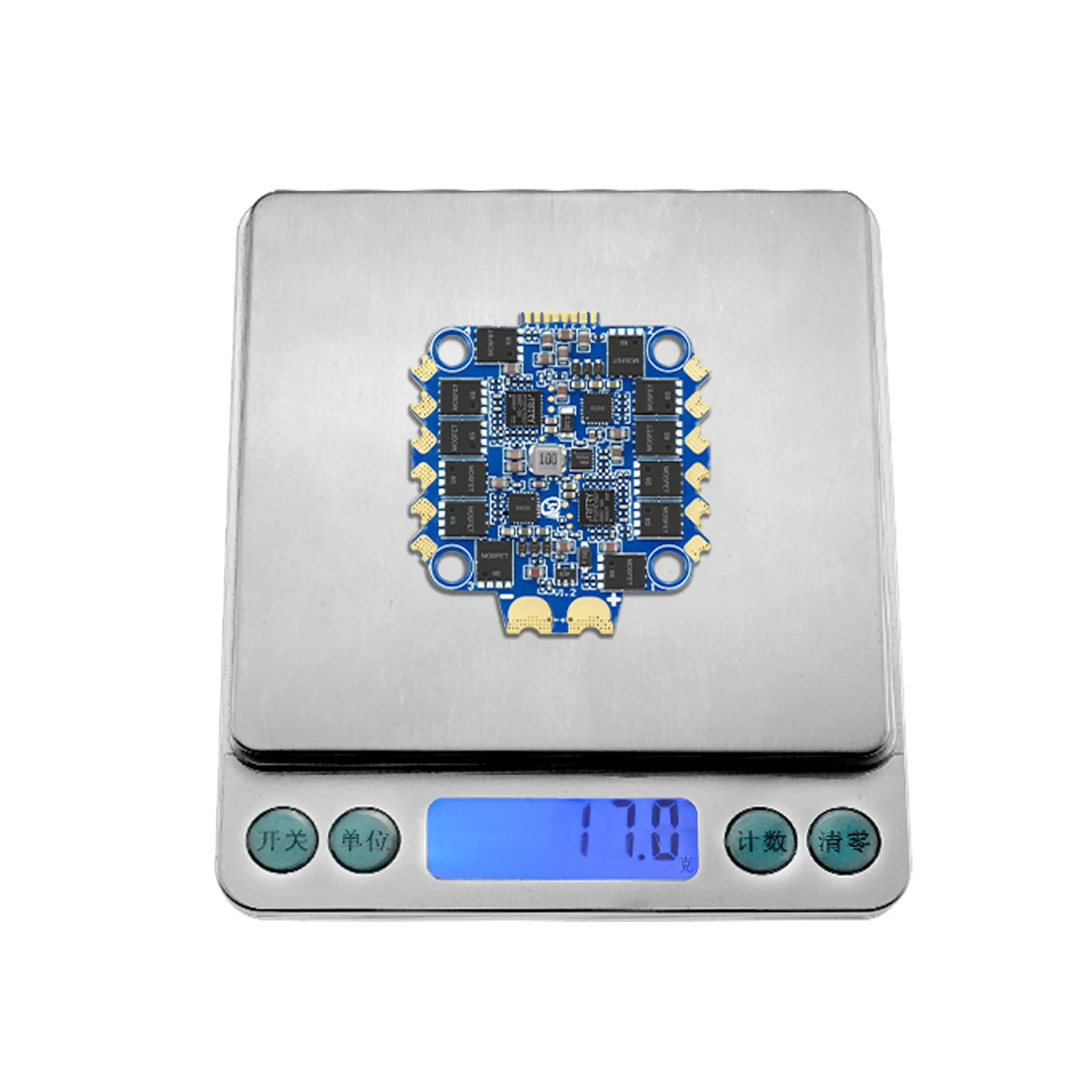

Net Weight Of Product: 17g
（2）Package Size: 90*60*36mm
Packing Weight: 65g
（3）Package Size (Including Outer Carton)：150*100*40mm
Packing Weight (Including Outer Carton)：115g
