VCI SPARK 0802 27000KV Brushless Motor (4-Pack)

₪200.00

Please, activate Wishlist option to use this widget.

VCI SPARK 0802 27000KV Brushless Motor (4-Pack)

Dual-bearing whoop power. The VCI SPARK 0802 27000KV is a 1S micro brushless motor from VCI (Vulcan Innovation) for tiny whoops and indoor racers, with an 8.4 x 2mm stator and N52SH arc magnets. Sold as a set of 4.

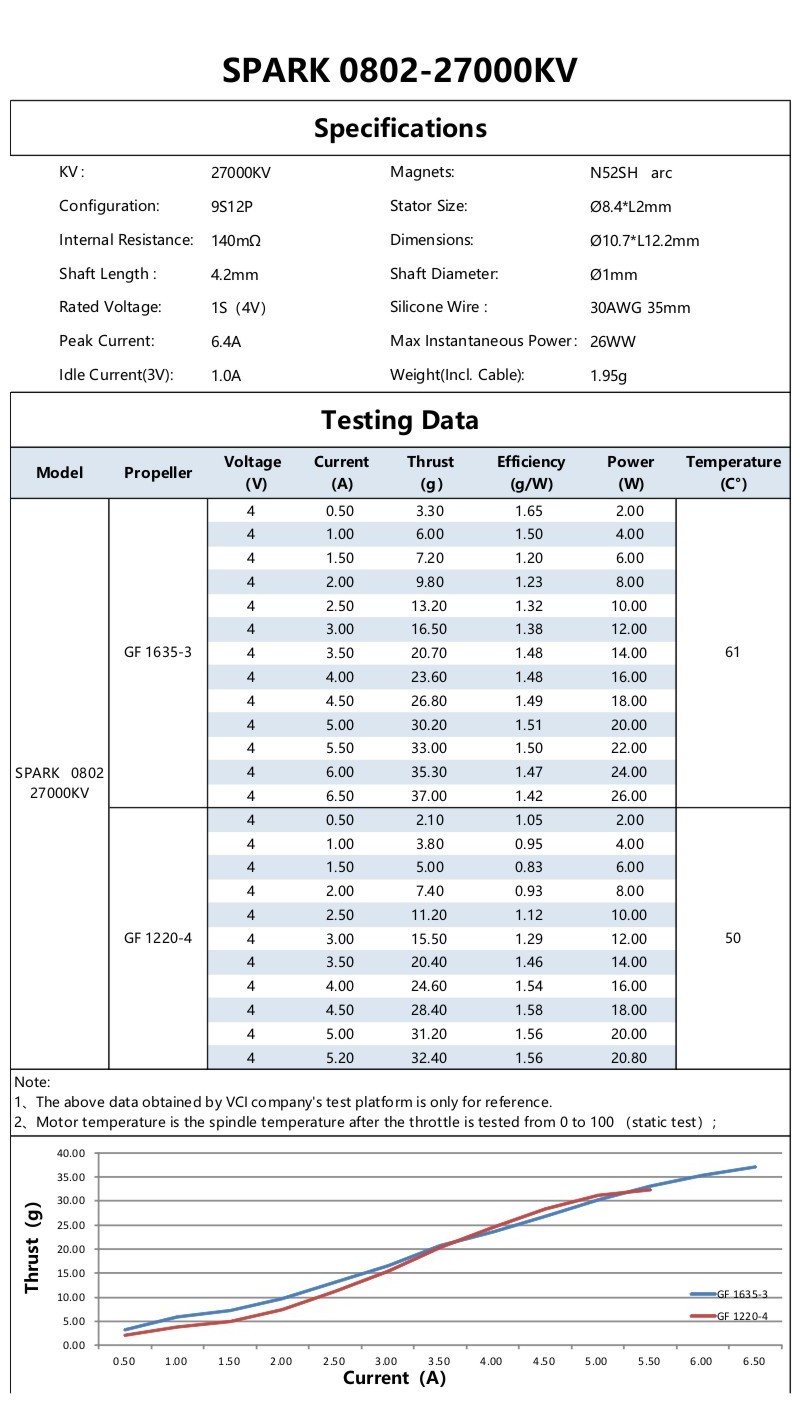

Specifications

  • KV: 27000KV
  • Cells: 1S (4V)
  • Configuration: 9N12P
  • Magnets: N52SH arc
  • Stator: Ø8.4 x 2mm
  • Motor Dimensions: Ø10.7 x 12.2mm
  • Shaft: 1mm diameter, 4.2mm length
  • Mounting: 3 x M1.4 on a 6.6mm circle
  • Internal Resistance: 140mΩ
  • Peak Current: 6.4A
  • Max Instantaneous Power: 26W
  • Wires: 30AWG, 35mm
  • Weight: 1.95g each (including cable)
